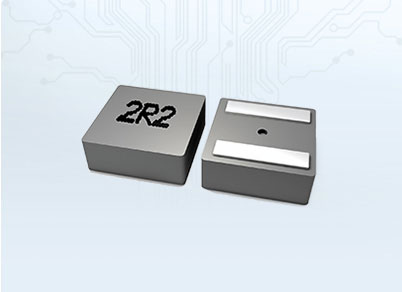

APH-TC系列-扁线一体成型电感

● 磁屏蔽结构，闭合磁路，抗电磁干扰能力强，超低蜂鸣器，高密度安装。

● 体积小，电流大，在高频和高温环境下保持优良的温度电流和饱和电流特性。

● 低损耗合金粉末模具外壳，电阻低，结构坚固，产品精度高

Part Number	Inductance @100kHz,1V	Inductance Tolerance	Heat Rating Current Max.	Saturation Current Max.	DC Resistance Max.	RoHS
Units	μH	-	A	A	mΩ	-
Symbol	L	-	Irms	Isat	DCR	-

APH1580C-220M-TC	22μH	±20%	12	16	23.2	RoHS
APH1580C-150M-TC	15μH	±20%	13	18	15	RoHS
APH1580C-100M-TC	10μH	±20%	16	21	9.6	RoHS
APH1580C-8R2M-TC	8.2μH	±20%	19	25	7.92	RoHS
APH1580C-7R2M-TC	7.2μH	±20%	21	29	7.2	RoHS
APH1580C-6R2M-TC	6.2μH	±20%	23	31	6.5	RoHS
APH1580C-5R3M-TC	5.3μH	±20%	26	31	5.34	RoHS
APH1580C-3R0M-TC	3μH	±20%	34.5	41	3	RoHS
APH1580C-2R2M-TC	2.2μH	±20%	37	49	2.48	RoHS
APH1580C-2R0M-TC	2μH	±20%	40	52	2.21	RoHS
APH1513C-330M-TC	33μH	±20%	14	16	22.2	RoHS
APH1513C-220M-TC	22μH	±20%	17	19	13.86	RoHS
APH1513C-150M-TC	15μH	±20%	22	21	7.5	RoHS
APH1513C-100M-TC	10μH	±20%	25	27	7	RoHS
APH1513C-8R2M-TC	8.2μH	±20%	26	29	5.74	RoHS
APH1513C-6R8M-TC	6.8μH	±20%	27	32	4.2	RoHS
APH1513C-5R6M-TC	5.6μH	±20%	29	35	3.9	RoHS
APH1513C-4R7M-TC	4.7μH	±20%	31	40	3.3	RoHS
APH1510C-330M-TC	33μH	±20%	12.3	14	20	RoHS
APH1510C-220M-TC	22μH	±20%	14.2	16	15.8	RoHS
APH1510C-150M-TC	15μH	±20%	18	18	11.5	RoHS
APH1510C-100M-TC	10μH	±20%	24	26	8.6	RoHS
APH1510C-8R2M-TC	8.2μH	±20%	25	28	7.2	RoHS
APH1510C-6R8M-TC	6.8μH	±20%	26	31	4.6	RoHS
APH1510C-5R6M-TC	5.6μH	±20%	28	34	4.2	RoHS
APH1510C-4R7M-TC	4.7μH	±20%	30	39	3.8	RoHS
APH1060C-4R7M-TC	4.7μH	±20%	14	22	10.72	RoHS
APH1060C-3R3M-TC	3.3μH	±20%	16.8	25	7.7	RoHS
APH1060C-2R2M-TC	2.2μH	±20%	20	30	4.84	RoHS
APH1060C-1R5M-TC	1.5μH	±20%	24.5	36	3.3	RoHS
APH1060C-1R2M-TC	1.2μH	±20%	26.5	40	2.64	RoHS
APH1060C-1R0M-TC	1μH	±20%	28.5	44	2.32	RoHS
APH1060C-R68M-TC	0.68μH	±20%	34	50	1.5	RoHS
APH1031C-1R5M-TC	1.5μH	±20%	18	25	6.6	RoHS
APH1031C-1R0M-TC	1μH	±20%	23	30	4.95	RoHS
APH1031C-R90M-TC	0.9μH	±20%	24	31	4.2	RoHS
APH1031C-R82M-TC	0.82μH	±20%	25	32	4.1	RoHS
APH1031C-R56M-TC	0.56μH	±20%	32	39	2.75	RoHS
APH1031C-R28M-TC	0.28μH	±20%	35	58	1.6	RoHS
APH1010C-150M-TC	15μH	±20%	13.8	12.5	19.3	RoHS
APH1010C-100M-TC	10μH	±20%	15.5	14.6	13.75	RoHS
APH1010C-8R2M-TC	8.2μH	±20%	17.1	16.3	12.4	RoHS
APH1010C-6R8M-TC	6.8μH	±20%	18.5	18.5	8.9	RoHS
APH1010C-5R6M-TC	5.6μH	±20%	21.2	19.6	7.2	RoHS
APH1010C-4R7M-TC	4.7μH	±20%	24	21.4	5.7	RoHS
APH1010C-3R3M-TC	3.3μH	±20%	25	23.4	4.1	RoHS
APH1010C-2R2M-TC	2.2μH	±20%	32	29	2.8	RoHS
APH0880C-100M-TC	10μH	±20%	8.7	10	22.9	RoHS
APH0880C-6R8M-TC	6.8μH	±20%	11.3	12.5	14.3	RoHS
APH0880C-4R7M-TC	4.7μH	±20%	14.6	17	9.8	RoHS
APH0880C-3R3M-TC	3.3μH	±20%	18	20	7.3	RoHS
APH0880C-2R2M-TC	2.2μH	±20%	21.5	22	4.3	RoHS
APH0880C-1R8M-TC	1.8μH	±20%	24	24	4	RoHS
APH0770C-6R8M-TC	6.8μH	±20%	9.5	11	19.6	RoHS
APH0770C-4R7M-TC	4.7μH	±20%	13.6	14	13.5	RoHS
APH0770C-3R3M-TC	3.3μH	±20%	15.1	15.1	9.42	RoHS
APH0770C-1R8M-TC	1.8μH	±20%	21	23	4.46	RoHS
APH0770C-1R0M-TC	1μH	±20%	25	31.8	2.81	RoHS
APH0730C-8R2M-TC	8.2μH	±20%	5.9	9	48.73	RoHS
APH0730C-6R8M-TC	6.8μH	±20%	6.8	11	42.5	RoHS
APH0730C-5R6M-TC	5.6μH	±20%	7.3	11.5	33.2	RoHS
APH0730C-4R7M-TC	4.7μH	±20%	9	12.2	26.7	RoHS
APH0730C-3R3M-TC	3.3μH	±20%	10	13	18	RoHS
APH0730C-2R7M-TC	2.7μH	±20%	11.4	13.5	15.4	RoHS
APH0730C-2R2M-TC	2.2μH	±20%	13	17	13.7	RoHS
APH0730C-1R5M-TC	1.5μH	±20%	15.3	23.5	8.25	RoHS
APH0730C-1R0M-TC	1μH	±20%	21.8	28	5	RoHS
APH0720C-1R0M-TC	1μH	±20%	11	20	10.8	RoHS
APH0720C-R68M-TC	0.68μH	±20%	13	23	9.2	RoHS
APH0720C-R47M-TC	0.47μH	±20%	17	25	6.2	RoHS
APH0720C-R33M-TC	0.33μH	±20%	19	31	4.8	RoHS
APH0720C-R31M-TC	0.31μH	±20%	20	31	4.8	RoHS
APH0720C-R27M-TC	0.27μH	±20%	21	32	3.5	RoHS
APH0660C-220M-TC	22μH	±20%	5	4.8	60.63	RoHS
APH0660C-150M-TC	15μH	±20%	6	5	43.75	RoHS
APH0660C-100M-TC	10μH	±20%	7	6.8	29.82	RoHS
APH0660C-8R2M-TC	8.2μH	±20%	8	8	26.4	RoHS
APH0660C-6R8M-TC	6.8μH	±20%	9	8.1	20.8	RoHS
APH0660C-5R6M-TC	5.6μH	±20%	10	8.7	15.9	RoHS
APH0660C-4R7M-TC	4.7μH	±20%	11	9.3	14.4	RoHS
APH0660C-3R3M-TC	3.3μH	±20%	12	11	12.3	RoHS
APH0660C-2R2M-TC	2.2μH	±20%	14	12.5	8.1	RoHS
APH0660C-1R5M-TC	1.5μH	±20%	17.5	15	6.1	RoHS
APH0660C-1R0M-TC	1μH	±20%	21	19	4.4	RoHS
APH0650C-4R7M-TC	4.7μH	±20%	8.5	8	18.4	RoHS
APH0650C-4R3M-TC	4.3μH	±20%	9	8.5	16.2	RoHS
APH0650C-3R3M-TC	3.3μH	±20%	11	10	12.5	RoHS
APH0650C-2R2M-TC	2.2μH	±20%	13	12	8.5	RoHS
APH0650C-1R5M-TC	1.5μH	±20%	17	14.5	6.3	RoHS
APH0650C-1R2M-TC	1.2μH	±20%	18	16	5.83	RoHS
APH0650C-1R0M-TC	1μH	±20%	20	18	4.52	RoHS
APH0650C-R82M-TC	0.82μH	±20%	21	20	4.18	RoHS
APH0630C-4R5M-TC	4.5μH	±20%	7	8	25.3	RoHS
APH0630C-3R3M-TC	3.3μH	±20%	8	9	20.8	RoHS
APH0630C-2R2M-TC	2.2μH	±20%	10	11	12.2	RoHS
APH0630C-1R8M-TC	1.8μH	±20%	14	13	10.2	RoHS
APH0630C-1R5M-TC	1.5μH	±20%	15	15.5	9.13	RoHS
APH0630C-1R2M-TC	1.2μH	±20%	16	16	7.4	RoHS
