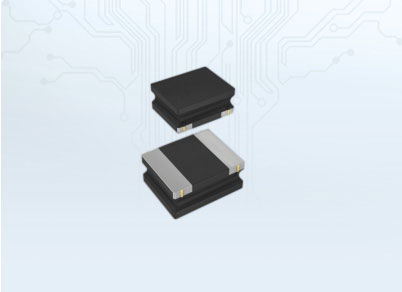

ANRL系列-低内阻磁胶功率电感
● 各种大功率电感，高饱和度优。
● 适用于表面贴装。
● 占用更少的PCB空间，低损耗。
● 磁性树脂屏蔽结构将蜂鸣噪音降至超低水平。
● 闭合磁路设计，减少漏磁通和电磁干扰。
● 工作温度：-40℃~+125℃。
| Part Number | Inductance
@100kHz,1V | Inductance
Tolerance | Heat Rating Current Max. | Saturation Current Max. | DC Resistance Typ. | RoHS |
|---|
| Units | μH | - | A | A | Ω | - |
|---|
| Symbol | L | - | Irms | Isat | DCR | - |
|---|
| ANRL252012-1R8M | 1.8μH | M | 1.75 | 1.95 | 0.108 | RoHS |
| ANRL252012-1R5M | 1.5μH | M | 1.80 | 2.00 | 0.090 | RoHS |
| ANRL252012-1R2M | 1.2μH | M | 2.00 | 2.20 | 0.078 | RoHS |
| ANRL252012-1R0M | 1μH | M | 2.30 | 2.25 | 0.060 | RoHS |
| ANRL252012-R68M | 0.68μH | M | 2.30 | 3.00 | 0.047 | RoHS |
| ANRL252012-R47M | 0.47μH | M | 3.00 | 3.80 | 0.036 | RoHS |
| ANRL252012-R33M | 0.33μH | M | 3.35 | 4.00 | 0.031 | RoHS |
| ANRL252012-R24M | 0.24μH | M | 4.10 | 4.10 | 0.023 | RoHS |
| ANRL252010-1R5M | 1.5μH | M | 1.55 | 1.70 | 0.108 | RoHS |
| ANRL252010-1R0M | 1μH | M | 1.85 | 2.05 | 0.080 | RoHS |
| ANRL252010-R68M | 0.68μH | M | 2.10 | 2.75 | 0.062 | RoHS |
| ANRL252010-R47M | 0.47μH | M | 2.40 | 2.80 | 0.044 | RoHS |
| ANRL252010-R33M | 0.33μH | M | 2.45 | 3.60 | 0.040 | RoHS |
| ANRL252010-R24M | 0.24μH | M | 2.75 | 3.60 | 0.034 | RoHS |
| ANRL201610-1R5M | 1.5μH | M | 1.10 | 1.35 | 0.174 | RoHS |
| ANRL201610-1R0M | 1μH | M | 1.45 | 1.65 | 0.114 | RoHS |
| ANRL201610-R68M | 0.68μH | M | 2.00 | 1.95 | 0.076 | RoHS |
| ANRL201610-R47M | 0.47μH | M | 2.30 | 2.30 | 0.060 | RoHS |
| ANRL201610-R33M | 0.33μH | M | 2.40 | 3.00 | 0.048 | RoHS |
| ANRL201610-R24M | 0.24μH | M | 2.80 | 3.70 | 0.040 | RoHS |
| ANRL201610-R22M | 0.22μH | M | 2.80 | 3.70 | 0.040 | RoHS |
| ANRL252012-470M | 47μH | M | 0.20 | 0.30 | 2.250 | RoHS |
| ANRL252012-330M | 33μH | M | 0.35 | 0.35 | 1.840 | RoHS |
| ANRL252012-220M | 22μH | M | 0.48 | 0.45 | 1.290 | RoHS |
| ANRL252012-150M | 15μH | M | 0.50 | 0.60 | 1.000 | RoHS |
| ANRL252012-100M | 10μH | M | 0.78 | 0.70 | 0.522 | RoHS |
| ANRL252012-8R2M | 8.2μH | M | 0.80 | 0.80 | 0.522 | RoHS |
| ANRL252012-6R8M | 6.8μH | M | 0.95 | 0.90 | 0.360 | RoHS |
| ANRL252012-5R6M | 5.6μH | M | 1.00 | 1.00 | 0.330 | RoHS |
| ANRL252012-4R7M | 4.7μH | M | 1.10 | 1.10 | 0.228 | RoHS |
| ANRL252012-3R3M | 3.3μH | M | 1.40 | 1.20 | 0.156 | RoHS |
| ANRL252012-2R7M | 2.7μH | M | 1.40 | 1.30 | 0.156 | RoHS |
| ANRL252012-2R2M | 2.2μH | M | 1.75 | 1.75 | 0.108 | RoHS |
| ANRL252012-1R8N | 1.8μH | N | 1.75 | 1.95 | 0.108 | RoHS |
| ANRL252012-1R5N | 1.5μH | N | 1.80 | 2.00 | 0.090 | RoHS |
| ANRL252012-1R2N | 1.2μH | N | 2.00 | 2.20 | 0.078 | RoHS |
| ANRL252012-1R0N | 1μH | N | 2.30 | 2.25 | 0.060 | RoHS |
| ANRL252012-R68N | 0.68μH | N | 2.30 | 3.00 | 0.047 | RoHS |
| ANRL252012-R47N | 0.47μH | N | 3.00 | 3.80 | 0.036 | RoHS |
| ANRL252012-R33N | 0.33μH | N | 3.35 | 4.00 | 0.031 | RoHS |
| ANRL252012-R24N | 0.24μH | N | 4.10 | 4.10 | 0.023 | RoHS |
| ANRL252010-220M | 22μH | M | 0.32 | 0.40 | 1.344 | RoHS |
| ANRL252010-150M | 15μH | M | 0.45 | 0.50 | 1.050 | RoHS |
| ANRL252010-120M | 12μH | M | 0.58 | 0.58 | 0.850 | RoHS |
| ANRL252010-100M | 10μH | M | 0.65 | 0.65 | 0.600 | RoHS |
| ANRL252010-8R2M | 8.2μH | M | 0.69 | 0.73 | 0.572 | RoHS |
| ANRL252010-6R8M | 6.8μH | M | 0.72 | 0.80 | 0.480 | RoHS |
| ANRL252010-5R6M | 5.6μH | M | 0.80 | 0.90 | 0.480 | RoHS |
| ANRL252010-4R7M | 4.7μH | M | 0.90 | 1.00 | 0.330 | RoHS |
| ANRL252010-3R3M | 3.3μH | M | 1.05 | 1.10 | 0.228 | RoHS |
| ANRL252010-2R2M | 2.2μH | M | 1.35 | 1.50 | 0.150 | RoHS |
| ANRL252010-1R5N | 1.5μH | N | 1.55 | 1.70 | 0.108 | RoHS |
| ANRL252010-1R0N | 1μH | N | 1.85 | 2.05 | 0.080 | RoHS |
| ANRL252010-R68N | 0.68μH | N | 2.10 | 2.75 | 0.062 | RoHS |
| ANRL252010-R47N | 0.47μH | N | 2.40 | 2.80 | 0.044 | RoHS |
| ANRL252010-R33N | 0.33μH | N | 2.45 | 3.60 | 0.040 | RoHS |
| ANRL252010-R24N | 0.24μH | N | 2.75 | 3.60 | 0.034 | RoHS |
| ANRL201610-100M | 10μH | M | 0.50 | 0.65 | 1.000 | RoHS |
| ANRL201610-8R2M | 8.2μH | M | 0.53 | 0.68 | 0.940 | RoHS |
| ANRL201610-6R8M | 6.8μH | M | 0.55 | 0.70 | 0.800 | RoHS |
| ANRL201610-4R7M | 4.7μH | M | 0.70 | 0.75 | 0.480 | RoHS |
| ANRL201610-3R3M | 3.3μH | M | 0.85 | 1.00 | 0.345 | RoHS |
| ANRL201610-2R2M | 2.2μH | M | 1.05 | 1.20 | 0.265 | RoHS |
| ANRL201610-1R5N | 1.5μH | N | 1.10 | 1.35 | 0.174 | RoHS |
| ANRL201610-1R0N | 1μH | N | 1.45 | 1.65 | 0.114 | RoHS |
| ANRL201610-R68N | 0.68μH | N | 2.00 | 1.95 | 0.076 | RoHS |
| ANRL201610-R47N | 0.47μH | N | 2.30 | 2.30 | 0.060 | RoHS |
| ANRL201610-R33N | 0.33μH | N | 2.40 | 3.00 | 0.048 | RoHS |
| ANRL201610-R24N | 0.24μH | N | 2.80 | 3.70 | 0.040 | RoHS |
| ANRL201610-R22N | 0.22μH | N | 2.80 | 3.70 | 0.040 | RoHS |
