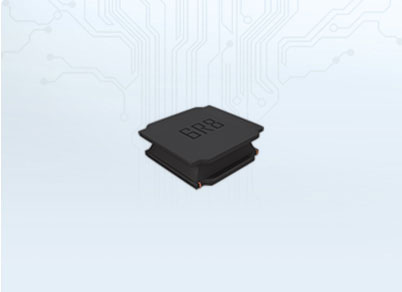

APS系列-磁胶功率电感

● 各种高功率电感器优于高饱和度

● 适用于表面贴装设备

● 闭磁路设计可减少漏磁通和电磁干扰 (EMI)

● 占用更少的 PCB 空间并节省更多电能

● 磁树脂屏蔽结构可减少漏磁通和电磁干扰 (EMI)蜂鸣噪音超低

● 工作温度：-40℃~+125℃

下载
Part NumberInductance
@100kHz,1V		Inductance
Tolerance		Heat Rating Current Max.Saturation Current Max.DC Resistance Typ.RoHS
UnitsμH-AAΩ-
SymbolL-IrmsIsatDCR-
APSWPA4020S2R2MTF2.2μH±20%1.85 3.40 0.052 RoHS
APSWPA4020S1R5MTF1.5μH±20%1.98 4.45 0.046 RoHS
APSWPA4020S1R2MTF1.2μH±20%2.15 5.10 0.038 RoHS
APSWPA4020S1R0MTF1μH±20%2.15 4.78 0.038 RoHS
APSWPA4020SR68MTF0.68μH±20%2.80 6.40 0.036 RoHS
APSWPA4020SR47MTF0.47μH±20%3.30 7.00 0.029 RoHS
APSWPA4020SR33MTF0.33μH±20%3.30 7.50 0.016 RoHS
APSWPA4018S2R2MTF2.2μH±20%1.65 2.70 0.059 RoHS
APSWPA4018S1R8MTF1.8μH±20%2.00 3.00 0.044 RoHS
APSWPA4018S1R5MTF1.5μH±20%1.80 3.35 0.039 RoHS
APSWPA4018S1R0MTF1μH±20%2.00 4.80 0.033 RoHS
APSWPA4018SR68MTF0.68μH±20%3.30 4.90 0.026 RoHS
APSWPA4018SR47MTF0.47μH±20%4.00 4.30 0.018 RoHS
APSWPA4012S5R6MTF5.6μH±20%1.00 1.00 0.182 RoHS
APSWPA4012S5R1MTF5.1μH±20%0.95 1.55 0.201 RoHS
APSWPA4012S4R7MTF4.7μH±20%1.05 1.15 0.163 RoHS
APSWPA4012S4R3MTF4.3μH±20%1.00 1.58 0.182 RoHS
APSWPA4012S3R6MTF3.6μH±20%1.12 1.20 0.143 RoHS
APSWPA4012S3R3MTF3.3μH±20%1.12 1.72 0.143 RoHS
APSWPA4012S2R7MTF2.7μH±20%1.25 1.90 0.117 RoHS
APSWPA4012S2R2MTF2.2μH±20%1.32 1.76 0.104 RoHS
APSWPA4012S1R8MTF1.8μH±20%1.32 2.12 0.104 RoHS
APSWPA4012S1R5MTF1.5μH±20%1.46 2.10 0.085 RoHS
APSWPA4012S1R0MTF1μH±20%1.65 2.61 0.065 RoHS
APSWPA4012SR82MTF0.82μH±20%1.65 3.02 0.065 RoHS
APSWPA4010S1R5MTF1.5μH±20%1.70 1.68 0.084 RoHS
APSWPA4010S1R0MTF1μH±20%1.90 2.00 0.067 RoHS
APSWPA3015S2R7MTF2.7μH±20%1.43 1.52 0.098 RoHS
APSWPA3015S2R2MTF2.2μH±20%1.60 1.60 0.078 RoHS
APSWPA3015S1R8MTF1.8μH±20%1.70 1.75 0.065 RoHS
APSWPA3015S1R5MTF1.5μH±20%1.70 2.30 0.065 RoHS
APSWPA3015S1R2MTF1.2μH±20%1.95 2.21 0.052 RoHS
APSWPA3015S1R0MTF1μH±20%2.35 2.32 0.039 RoHS
APSWPA3015SR50MTF0.5μH±20%2.60 3.90 0.039 RoHS
APSWPA3012S2R4MTF2.4μH±20%1.60 1.15 0.088 RoHS
APSWPA3012S2R2MTF2.2μH±20%1.55 1.20 0.098 RoHS
APSWPA3012S1R8MTF1.8μH±20%1.65 1.30 0.082 RoHS
APSWPA3012S1R5MTF1.5μH±20%2.01 1.62 0.078 RoHS
APSWPA3012S1R2MTF1.2μH±20%2.01 2.22 0.059 RoHS
APSWPA3012S1R0MTF1μH±20%2.20 1.87 0.052 RoHS
APSWPA3012SR82MTF0.82μH±20%2.47 2.05 0.039 RoHS
APSWPA3012SR22MTF0.22μH±20%3.00 5.30 0.022 RoHS
APSWPA3010S3R3MTF3.3μH±20%0.96 0.97 0.189 RoHS
APSWPA3010S2R7MTF2.7μH±20%1.02 1.00 0.169 RoHS
APSWPA3010S2R2MTF2.2μH±20%1.09 1.15 0.143 RoHS
APSWPA3010S1R5MTF1.5μH±20%1.30 1.27 0.104 RoHS
APSWPA3010S1R2MTF1.2μH±20%1.45 1.25 0.085 RoHS
APSWPA3010S1R0MTF1μH±20%1.45 1.40 0.085 RoHS
APSWPA252012S2R2MTF2.2μH±20%1.15 1.85 0.216 RoHS
APSWPA252012S1R5MTF1.5μH±20%1.40 2.24 0.147 RoHS
APSWPA252012S1R2MTF1.2μH±20%1.46 2.38 0.129 RoHS
APSWPA252012S1R0MTF1μH±20%1.93 2.59 0.090 RoHS
APSWPA252012SR68MTF0.68μH±20%1.95 3.28 0.074 RoHS
APSWPA252012SR47MTF0.47μH±20%2.15 3.82 0.061 RoHS
APSWPA252010S2R2MTF2.2μH±20%1.20 1.20 0.209 RoHS
APSWPA252010S1R5MTF1.5μH±20%1.30 1.80 0.182 RoHS
APSWPA252010S1R0MTF1μH±20%1.65 1.85 0.108 RoHS
APSWPA252010SR68MTF0.68μH±20%2.00 2.20 0.074 RoHS
APSWPA252010SR56MTF0.56μH±20%2.00 2.90 0.072 RoHS
APSWPA252010SR47MTF0.47μH±20%2.35 2.50 0.056 RoHS
APSWPA8065S102MTF1000μH±20%0.40 0.65 2.820 RoHS
APSWPA8065S681MTF680μH±20%0.52 0.85 1.944 RoHS
APSWPA8065S471MTF470μH±20%0.55 1.00 1.560 RoHS
APSWPA8065S331MTF330μH±20%0.75 1.00 0.840 RoHS
APSWPA8065S221MTF220μH±20%0.80 1.20 0.656 RoHS
APSWPA8065S151MTF150μH±20%0.95 1.60 0.440 RoHS
APSWPA8065S101MTF100μH±20%1.35 2.00 0.280 RoHS
APSWPA8065S680MTF68μH±20%1.55 2.70 0.218 RoHS
APSWPA8065S560MTF56μH±20%1.35 3.20 0.198 RoHS
APSWPA8065S470MTF47μH±20%1.85 3.40 0.152 RoHS
APSWPA8065S220MTF22μH±20%2.70 4.30 0.072 RoHS
APSWPA8065S150MTF15μH±20%3.25 5.70 0.053 RoHS
APSWPA8065S100MTF10μH±20%3.20 8.00 0.044 RoHS
APSWPA8065S8R2MTF8.2μH±20%4.20 7.00 0.031 RoHS
APSWPA8065S6R8MTF6.8μH±20%4.50 7.50 0.026 RoHS
APSWPA8065S5R6MTF5.6μH±20%4.50 8.00 0.026 RoHS
APSWPA8065S4R7MTF4.7μH±20%4.70 8.50 0.022 RoHS
APSWPA8065S3R3MTF3.3μH±20%5.10 9.50 0.018 RoHS
APSWPA8065S2R2MTF2.2μH±20%5.20 13.80 0.016 RoHS
APSWPA8065S1R0MTF1μH±20%7.00 20.00 0.011 RoHS
APSWPA8065SR68MTF0.68μH±20%7.50 24.00 0.008 RoHS
APSWPA8040S471MTF470μH±20%0.50 0.60 1.625 RoHS
APSWPA8040S331MTF330μH±20%0.64 0.68 1.156 RoHS
APSWPA8040S221MTF220μH±20%0.80 0.85 0.779 RoHS
APSWPA8040S181MTF180μH±20%0.83 0.95 0.676 RoHS
APSWPA8040S151MTF150μH±20%0.85 1.10 0.533 RoHS
APSWPA8040S121MTF120μH±20%0.95 1.05 0.434 RoHS
APSWPA8040S101MTF100μH±20%1.00 1.15 0.377 RoHS
APSWPA8040S910MTF91μH±20%1.05 1.20 0.354 RoHS
APSWPA8040S820MTF82μH±20%1.15 1.30 0.293 RoHS
APSWPA8040S750MTF75μH±20%1.20 1.35 0.274 RoHS
APSWPA8040S680MTF68μH±20%1.25 1.45 0.255 RoHS
APSWPA8040S620MTF62μH±20%1.30 1.50 0.237 RoHS
APSWPA8040S560MTF56μH±20%1.45 1.55 0.192 RoHS
APSWPA8040S510MTF51μH±20%1.50 1.70 0.185 RoHS
APSWPA8040S470MTF47μH±20%1.55 1.75 0.177 RoHS
APSWPA8040S430MTF43μH±20%1.65 1.90 0.147 RoHS
APSWPA8040S390MTF39μH±20%1.70 1.95 0.139 RoHS
APSWPA8040S360MTF36μH±20%1.75 2.00 0.133 RoHS
APSWPA8040S330MTF33μH±20%1.80 2.05 0.126 RoHS
