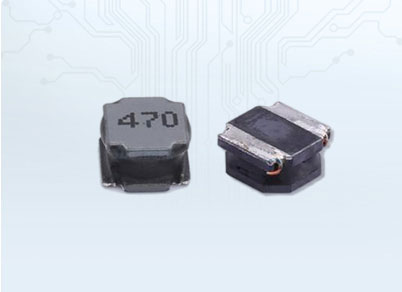

ANR系列-磁胶功率电感
● 各种大功率电感，高饱和度优。
● 适用于表面贴装。
● 占用更少的PCB空间，低损耗。
● 磁性树脂屏蔽结构将蜂鸣噪音降至超低水平。
● 闭合磁路设计，减少漏磁通和电磁干扰。
● 工作温度：-40℃~+125℃。
| Part Number | Inductance
@100kHz,1V | Inductance
Tolerance | Heat Rating Current Max. | Saturation Current Max. | DC Resistance Typ. | RoHS |
|---|
| Units | μH | - | A | A | Ω | - |
|---|
| Symbol | L | - | Irms | Isat | DCR | - |
|---|
| ANR8040T620M | 62μH | ±20% | 1.32 | 1.52 | 0.235 | RoHS |
| ANR8040T560M | 56μH | ±20% | 1.47 | 1.57 | 0.19 | RoHS |
| ANR8040T510M | 51μH | ±20% | 1.52 | 1.73 | 0.183 | RoHS |
| ANR8040T470M | 47μH | ±20% | 1.57 | 1.78 | 0.175 | RoHS |
| ANR8040T430M | 43μH | ±20% | 1.67 | 1.93 | 0.146 | RoHS |
| ANR8040T390M | 39μH | ±20% | 1.73 | 1.98 | 0.138 | RoHS |
| ANR8040T360M | 36μH | ±20% | 1.78 | 2.03 | 0.132 | RoHS |
| ANR8040T330M | 33μH | ±20% | 1.83 | 2.08 | 0.125 | RoHS |
| ANR8040T270M | 27μH | ±20% | 2.03 | 2.18 | 0.1 | RoHS |
| ANR8040T220M | 22μH | ±20% | 2.13 | 2.44 | 0.089 | RoHS |
| ANR8040T180M | 18μH | ±20% | 2.44 | 2.74 | 0.068 | RoHS |
| ANR8040T150M | 15μH | ±20% | 2.64 | 2.99 | 0.06 | RoHS |
| ANR8040T120M | 12μH | ±20% | 2.84 | 3.55 | 0.052 | RoHS |
| ANR8040T100M | 10μH | ±20% | 3.35 | 3.65 | 0.038 | RoHS |
| ANR8040T8R2M | 8.2μH | ±20% | 3.50 | 4.26 | 0.034 | RoHS |
| ANR8040T6R8M | 6.8μH | ±20% | 3.65 | 4.62 | 0.031 | RoHS |
| ANR8040T6R2M | 6.2μH | ±20% | 3.91 | 4.52 | 0.027 | RoHS |
| ANR8040T5R6M | 5.6μH | ±20% | 3.91 | 6.09 | 0.027 | RoHS |
| ANR8040T5R1M | 5.1μH | ±20% | 4.11 | 4.77 | 0.025 | RoHS |
| ANR8040T4R7M | 4.7μH | ±20% | 4.16 | 5.99 | 0.025 | RoHS |
| ANR8040T3R9M | 3.9μH | ±20% | 4.42 | 5.84 | 0.022 | RoHS |
| ANR8040T3R6M | 3.6μH | ±20% | 4.42 | 7.63 | 0.022 | RoHS |
| ANR8040T3R3M | 3.3μH | ±20% | 4.47 | 6.60 | 0.022 | RoHS |
| ANR8040T3R0M | 3μH | ±20% | 4.77 | 6.19 | 0.018 | RoHS |
| ANR8040T2R2M | 2.2μH | ±20% | 5.23 | 7.21 | 0.016 | RoHS |
| ANR8040T2R0M | 2μH | ±20% | 5.23 | 9.39 | 0.016 | RoHS |
| ANR8040T1R5M | 1.5μH | ±20% | 5.73 | 8.27 | 0.013 | RoHS |
| ANR8040T1R2M | 1.2μH | ±20% | 5.73 | 10.15 | 0.013 | RoHS |
| ANR8040T1R0M | 1μH | ±20% | 6.39 | 10.00 | 0.01 | RoHS |
| ANR8040TR82M | 0.82μH | ±20% | 6.39 | 14.01 | 0.01 | RoHS |
| ANR6045T152M | 1500μH | ±20% | 0.21 | 0.24 | 8.1 | RoHS |
| ANR6045T102M | 1000μH | ±20% | 0.30 | 0.30 | 5.85 | RoHS |
| ANR6045T681M | 680μH | ±20% | 0.33 | 0.43 | 3.25 | RoHS |
| ANR6045T471M | 470μH | ±20% | 0.43 | 0.51 | 2.34 | RoHS |
| ANR6045T331M | 330μH | ±20% | 0.58 | 0.58 | 1.651 | RoHS |
| ANR6045T221M | 220μH | ±20% | 0.60 | 0.71 | 1.084 | RoHS |
| ANR6045T151M | 150μH | ±20% | 0.71 | 0.81 | 0.754 | RoHS |
| ANR6045T121M | 120μH | ±20% | 0.78 | 0.86 | 0.623 | RoHS |
| ANR6045T101M | 100μH | ±20% | 0.81 | 0.96 | 0.563 | RoHS |
| ANR6045T910M | 91μH | ±20% | 0.86 | 1.02 | 0.462 | RoHS |
| ANR6045T820M | 82μH | ±20% | 0.91 | 1.07 | 0.5 | RoHS |
| ANR6045T750M | 75μH | ±20% | 0.96 | 1.17 | 0.393 | RoHS |
| ANR6045T680M | 68μH | ±20% | 1.02 | 1.22 | 0.376 | RoHS |
| ANR6045T620M | 62μH | ±20% | 1.12 | 1.27 | 0.303 | RoHS |
| ANR6045T560M | 56μH | ±20% | 1.12 | 1.32 | 0.287 | RoHS |
| ANR6045T510M | 51μH | ±20% | 1.17 | 1.37 | 0.266 | RoHS |
| ANR6045T470M | 47μH | ±20% | 1.22 | 1.42 | 0.26 | RoHS |
| ANR6045T430M | 43μH | ±20% | 1.22 | 1.65 | 0.257 | RoHS |
| ANR6045T390M | 39μH | ±20% | 1.27 | 1.52 | 0.232 | RoHS |
| ANR6045T360M | 36μH | ±20% | 1.42 | 1.64 | 0.223 | RoHS |
| ANR6045T330M | 33μH | ±20% | 1.47 | 1.67 | 0.178 | RoHS |
| ANR6045T300M | 30μH | ±20% | 1.52 | 1.73 | 0.17 | RoHS |
| ANR6045T270M | 27μH | ±20% | 1.67 | 1.93 | 0.132 | RoHS |
| ANR6045T220M | 22μH | ±20% | 1.83 | 2.08 | 0.116 | RoHS |
| ANR6045T180M | 18μH | ±20% | 1.88 | 2.23 | 0.104 | RoHS |
| ANR6045T150M | 15μH | ±20% | 2.08 | 2.54 | 0.088 | RoHS |
| ANR6045T120M | 12μH | ±20% | 2.23 | 2.84 | 0.074 | RoHS |
| ANR6045T100M | 10μH | ±20% | 2.49 | 3.25 | 0.062 | RoHS |
| ANR6045T9R1M | 9.1μH | ±20% | 2.64 | 3.40 | 0.055 | RoHS |
| ANR6045T8R2M | 8.2μH | ±20% | 2.64 | 3.96 | 0.06 | RoHS |
| ANR6045T7R5M | 7.5μH | ±20% | 2.94 | 3.55 | 0.044 | RoHS |
| ANR6045T6R8M | 6.8μH | ±20% | 3.05 | 3.96 | 0.04 | RoHS |
| ANR6045T6R3M | 6.3μH | ±20% | 3.05 | 4.50 | 0.04 | RoHS |
| ANR6045T6R2M | 6.2μH | ±20% | 3.05 | 4.50 | 0.04 | RoHS |
| ANR6045T5R6M | 5.6μH | ±20% | 3.20 | 4.21 | 0.038 | RoHS |
| ANR6045T5R1M | 5.1μH | ±20% | 3.35 | 4.47 | 0.034 | RoHS |
| ANR6045T4R7M | 4.7μH | ±20% | 3.35 | 5.04 | 0.034 | RoHS |
| ANR6045T4R5M | 4.5μH | ±20% | 3.35 | 5.04 | 0.034 | RoHS |
| ANR6045T4R3M | 4.3μH | ±20% | 3.55 | 4.52 | 0.03 | RoHS |
| ANR6045T3R6M | 3.6μH | ±20% | 3.76 | 5.33 | 0.027 | RoHS |
| ANR6045T3R3M | 3.3μH | ±20% | 3.76 | 5.99 | 0.027 | RoHS |
| ANR6045T3R0M | 3μH | ±20% | 3.86 | 5.68 | 0.026 | RoHS |
| ANR6045T2R7M | 2.7μH | ±20% | 4.36 | 5.84 | 0.02 | RoHS |
| ANR6045T2R3M | 2.3μH | ±20% | 3.55 | 6.09 | 0.027 | RoHS |
| ANR6045T2R2M | 2.2μH | ±20% | 4.67 | 6.85 | 0.023 | RoHS |
| ANR6045T1R8M | 1.8μH | ±20% | 5.02 | 7.71 | 0.016 | RoHS |
| ANR6045T1R5M | 1.5μH | ±20% | 5.02 | 8.93 | 0.016 | RoHS |
| ANR6045T1R3M | 1.3μH | ±20% | 5.48 | 8.48 | 0.013 | RoHS |
| ANR6045T1R2M | 1.2μH | ±20% | 5.48 | 8.48 | 0.016 | RoHS |
| ANR6045T1R0M | 1μH | ±20% | 5.22 | 10.00 | 0.014 | RoHS |
| ANR6045TR82M | 0.82μH | ±20% | 5.99 | 10.51 | 0.013 | RoHS |
| ANR6045TR68M | 0.68μH | ±20% | 5.79 | 11.17 | 0.012 | RoHS |
| ANR6045TR56M | 0.56μH | ±20% | 6.60 | 14.21 | 0.012 | RoHS |
| ANR6045TR47M | 0.47μH | ±20% | 6.60 | 15.23 | 0.012 | RoHS |
| ANR6040T150M | 15μH | ±20% | 2.05 | 2.50 | 0.088 | RoHS |
| ANR6040T100M | 10μH | ±20% | 2.45 | 3.20 | 0.062 | RoHS |
| ANR6028T102M | 1000μH | ±20% | 0.23 | 0.18 | 7.54 | RoHS |
| ANR6028T471M | 470μH | ±20% | 0.33 | 0.28 | 3.505 | RoHS |
| ANR6028T401M | 400μH | ±20% | 0.41 | 0.30 | 2.78 | RoHS |
| ANR6028T221M | 220μH | ±20% | 0.50 | 0.40 | 1.729 | RoHS |
| ANR6028T151M | 150μH | ±20% | 0.70 | 0.80 | 0.78 | RoHS |
| ANR6028T101M | 100μH | ±20% | 0.71 | 0.66 | 0.774 | RoHS |
| ANR6028T820M | 82μH | ±20% | 0.71 | 0.81 | 0.644 | RoHS |
| ANR6028T750M | 75μH | ±20% | 0.82 | 0.91 | 0.528 | RoHS |
| ANR6028T680M | 68μH | ±20% | 0.87 | 0.81 | 0.463 | RoHS |
| ANR6028T560M | 56μH | ±20% | 0.90 | 1.07 | 0.445 | RoHS |
| ANR6028T470M | 47μH | ±20% | 1.08 | 1.17 | 0.406 | RoHS |
| ANR6028T390M | 39μH | ±20% | 1.12 | 1.27 | 0.29 | RoHS |
| ANR6028T360M | 36μH | ±20% | 1.15 | 1.27 | 0.277 | RoHS |
| ANR6028T330M | 33μH | ±20% | 1.24 | 1.37 | 0.239 | RoHS |
