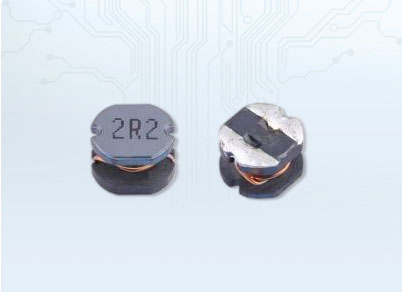

ACD系列-开放式功率电感
● 薄型、高电流。
● SMT型。
● 包装：载带包装。
● RoHS、无卤素和REACH 合规性。
● 工作温度：-40℃~+125℃。
| Part Number | Inductance
@100kHz,1V | Inductance
Tolerance | Heat Rating Current Max. | Saturation Current Max. | DC Resistance Typ. | RoHS |
|---|
| Units | μH | - | A | A | Ω | - |
|---|
| Symbol | L | - | Irms | Isat | DCR | - |
|---|
| ACD105-680M | 68 | ±20% | 1.1 | - | 0.21 | RoHS |
| ACD105-560M | 56 | ±20% | 1.15 | - | 0.19 | RoHS |
| ACD105-470MS1 | 47 | ±20% | 2.1 | - | 0.16 | RoHS |
| ACD105-470M | 47 | ±20% | 1.26 | - | 0.14 | RoHS |
| ACD105-390M | 39 | ±20% | 1.36 | - | 0.12 | RoHS |
| ACD105-330MS1 | 33 | ±20% | 2.6 | - | 0.11 | RoHS |
| ACD105-330M | 33 | ±20% | 1.46 | - | 0.11 | RoHS |
| ACD105-270M | 27 | ±20% | 1.74 | - | 0.1 | RoHS |
| ACD105-220MS1 | 22 | ±20% | 3.2 | - | 0.08 | RoHS |
| ACD105-220M | 22 | ±20% | 1.93 | - | 0.08 | RoHS |
| ACD105-180M | 18 | ±20% | 2.13 | - | 0.08 | RoHS |
| ACD105-150M | 15 | ±20% | 2.26 | - | 0.07 | RoHS |
| ACD105-120M | 12 | ±20% | 2.44 | - | 0.07 | RoHS |
| ACD105-100M | 10 | ±20% | 2.58 | - | 0.06 | RoHS |
| ACD105-8R2M | 8.2 | ±20% | 3.2 | - | 0.045 | RoHS |
| ACD105-6R8M | 6.8 | ±20% | 3.6 | - | 0.04 | RoHS |
| ACD105-5R6M | 5.6 | ±20% | 4 | - | 0.024 | RoHS |
| ACD105-4R7M | 4.7 | ±20% | 4.6 | - | 0.022 | RoHS |
| ACD105-3R3M | 3.3 | ±20% | 6.5 | - | 0.018 | RoHS |
| ACD105-2R2M | 2.2 | ±20% | 7.2 | - | 0.016 | RoHS |
| ACD105-1R5M | 1.5 | ±20% | 8 | - | 0.014 | RoHS |
| ACD105-1R2M | 1.2 | ±20% | 8.63 | - | 0.009 | RoHS |
| ACD104-561M | 560 | ±20% | 0.32 | - | 1.9 | RoHS |
| ACD104-471M | 470 | ±20% | 0.35 | - | 1.53 | RoHS |
| ACD104-391M | 390 | ±20% | 0.38 | - | 1.24 | RoHS |
| ACD104-331M | 330 | ±20% | 0.42 | - | 1.1 | RoHS |
| ACD104-271M | 270 | ±20% | 0.45 | - | 0.95 | RoHS |
| ACD104-221M | 220 | ±20% | 0.53 | - | 0.72 | RoHS |
| ACD104-181M | 180 | ±20% | 0.56 | - | 0.62 | RoHS |
| ACD104-151M | 150 | ±20% | 0.61 | - | 0.54 | RoHS |
| ACD104-121M | 120 | ±20% | 0.69 | - | 0.4 | RoHS |
| ACD104-101M | 100 | ±20% | 0.74 | - | 0.34 | RoHS |
| ACD104-820M | 82 | ±20% | 0.85 | - | 0.25 | RoHS |
| ACD104-680M | 68 | ±20% | 0.91 | - | 0.22 | RoHS |
| ACD104-560M | 56 | ±20% | 1.01 | - | 0.2 | RoHS |
| ACD104-470M | 47 | ±20% | 1.1 | - | 0.17 | RoHS |
| ACD104-390M | 39 | ±20% | 1.2 | - | 0.15 | RoHS |
| ACD104-330M | 33 | ±20% | 1.26 | - | 0.12 | RoHS |
| ACD104-270M | 27 | ±20% | 1.44 | - | 0.1 | RoHS |
| ACD104-220M | 22 | ±20% | 1.6 | - | 0.09 | RoHS |
| ACD104-180M | 18 | ±20% | 0.73 | - | 0.08 | RoHS |
| ACD104-150M | 15 | ±20% | 1.87 | - | 0.07 | RoHS |
| ACD104-120M | 12 | ±20% | 2.13 | - | 0.06 | RoHS |
| ACD104-100M | 10 | ±20% | 2.38 | - | 0.05 | RoHS |
| ACD104-8R2M | 8.2 | ±20% | 2.6 | - | 0.048 | RoHS |
| ACD104-6R8M | 6.8 | ±20% | 2.65 | - | 0.042 | RoHS |
| ACD104-5R6M | 5.6 | ±20% | 2.7 | - | 0.04 | RoHS |
| ACD104-4R7M | 4.7 | ±20% | 2.75 | - | 0.038 | RoHS |
| ACD104-3R9M | 3.9 | ±20% | 2.8 | - | 0.03 | RoHS |
| ACD104-3R3M | 3.3 | ±20% | 2.85 | - | 0.028 | RoHS |
| ACD104-2R7M | 2.7 | ±20% | 3.2 | - | 0.024 | RoHS |
| ACD104-2R2M | 2.2 | ±20% | 5.4 | - | 0.02 | RoHS |
| ACD104-1R8M | 1.8 | ±20% | 6.8 | - | 0.018 | RoHS |
| ACD104-1R5M | 1.5 | ±20% | 7.48 | - | 0.016 | RoHS |
| ACD104-1R2M | 1.2 | ±20% | 8 | - | 0.014 | RoHS |
| ACD104-1R0M | 1 | ±20% | 8.7 | - | 0.012 | RoHS |
| ACD77-221M | 220 | ±20% | 1 | - | 0.81 | RoHS |
| ACD77-151M | 150 | ±20% | 1.2 | - | 0.6 | RoHS |
| ACD77-101M | 100 | ±20% | 1.5 | - | 0.45 | RoHS |
| ACD77-470M | 47 | ±20% | 2 | - | 0.2 | RoHS |
| ACD77-330M | 33 | ±20% | 2.4 | - | 0.14 | RoHS |
| ACD77-220M | 22 | ±20% | 2.7 | - | 0.095 | RoHS |
| ACD75-222K | 2200 | ±10% | 0.1 | - | 10 | RoHS |
| ACD75-122K | 1200 | ±10% | 0.17 | - | 5 | RoHS |
| ACD75-102K | 1000 | ±10% | 0.17 | - | 5 | RoHS |
| ACD75-681M | 680 | ±20% | 0.3 | - | 2.48 | RoHS |
| ACD75-471M | 470 | ±20% | 0.34 | - | 1.96 | RoHS |
| ACD75-391M | 390 | ±20% | 0.36 | - | 1.77 | RoHS |
| ACD75-331M | 330 | ±20% | 0.56 | - | 1.85 | RoHS |
| ACD75-271M | 270 | ±20% | 0.42 | - | 1.11 | RoHS |
| ACD75-221MS1 | 220 | ±20% | 0.8 | - | 0.98 | RoHS |
| ACD75-221M | 220 | ±20% | 0.49 | - | 0.96 | RoHS |
| ACD75-181M | 180 | ±20% | 0.51 | - | 0.71 | RoHS |
| ACD75-151MS1 | 150 | ±20% | 1 | - | 0.68 | RoHS |
| ACD75-151M | 150 | ±20% | 0.58 | - | 0.64 | RoHS |
| ACD75-121MS1 | 120 | ±20% | 1.1 | - | 0.66 | RoHS |
| ACD75-121M | 120 | ±20% | 0.66 | - | 0.47 | RoHS |
| ACD75-101MS1 | 100 | ±20% | 1.2 | - | 0.48 | RoHS |
| ACD75-101M | 100 | ±20% | 0.72 | - | 0.43 | RoHS |
| ACD75-820M | 82 | ±20% | 0.78 | - | 0.37 | RoHS |
| ACD75-680MS1 | 68 | ±20% | 1.5 | - | 0.35 | RoHS |
| ACD75-680M | 68 | ±20% | 0.85 | - | 0.28 | RoHS |
| ACD75-560M | 56 | ±20% | 0.94 | - | 0.24 | RoHS |
| ACD75-470MS1 | 47 | ±20% | 1.8 | - | 0.23 | RoHS |
| ACD75-470M | 47 | ±20% | 1.1 | - | 0.18 | RoHS |
| ACD75-390M | 39 | ±20% | 1.1 | - | 0.16 | RoHS |
| ACD75-330MS1 | 33 | ±20% | 2 | - | 0.16 | RoHS |
| ACD75-330M | 33 | ±20% | 1.2 | - | 0.13 | RoHS |
| ACD75-270M | 27 | ±20% | 1.3 | - | 0.12 | RoHS |
| ACD75-220MS1 | 22 | ±20% | 2.5 | - | 0.11 | RoHS |
| ACD75-220M | 22 | ±20% | 1.5 | - | 0.11 | RoHS |
| ACD75-180M | 18 | ±20% | 1.6 | - | 0.1 | RoHS |
| ACD75-150M | 15 | ±20% | 1.8 | - | 0.09 | RoHS |
| ACD75-120M | 12 | ±20% | 2 | - | 0.08 | RoHS |
| ACD75-100M | 10 | ±20% | 2.6 | - | 0.07 | RoHS |
| ACD75-8R2M | 8.2 | ±20% | 2.8 | - | 0.07 | RoHS |
| ACD75-6R8M | 6.8 | ±20% | 3.2 | - | 0.058 | RoHS |
| ACD75-5R6M | 5.6 | ±20% | 3.6 | - | 0.048 | RoHS |
| ACD75-4R7M | 4.7 | ±20% | 4 | - | 0.045 | RoHS |
| ACD75-3R9M | 3.9 | ±20% | 4.2 | - | 0.03 | RoHS |
