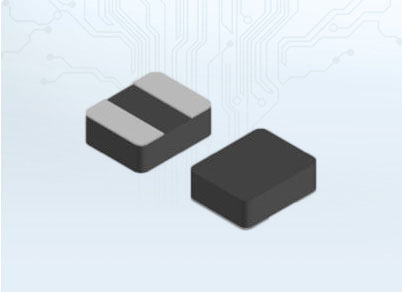

APH-C系列-微型扁线一体成型电感
● 卷绕式实现了小型化、薄型化。
● 金属材质，电流大，损耗低。
● 通过金属压粉磁芯实现高饱和电流性能。
● 闭合磁路设计，减少漏磁通。
● 乙烯基热喷涂，表面致密性更好。
● 工作温度：-40℃～+125℃。
| Part Number | Inductance
@100kHz,1V | Inductance
Tolerance | Heat Rating Current Max. | Saturation Current Max. | DC Resistance Max. | RoHS |
|---|
| Units | μH | - | A | A | mΩ | - |
|---|
| Symbol | L | - | Irms | Isat | DCR | - |
|---|
| APH201612CR10MP01 | 0.1μH | ±20% | 10 | 11.5 | 6 | ROHS |
| APH201612CR11MP01 | 0.11μH | ±20% | 14.5 | 11 | 5.6 | ROHS |
| APH201612CR15MP01 | 0.15μH | ±20% | 9 | 10.5 | 10 | ROHS |
| APH201612CR24MP01 | 0.24μH | ±20% | 8.6 | 8.7 | 11 | ROHS |
| APH201612CR33MP01 | 0.33μH | ±20% | 7.2 | 7.3 | 15 | ROHS |
| APH201612CR47MP01 | 0.47μH | ±20% | 6 | 6 | 17 | ROHS |
| APH201612CR68MP01 | 0.68μH | ±20% | 5.3 | 5.3 | 23 | ROHS |
| APH201612C1R0MP01 | 1μH | ±20% | 4.5 | 4.5 | 36 | ROHS |
| APH201612C1R5MP01 | 1.5μH | ±20% | 3.5 | 3.5 | 50 | ROHS |
| APH201612C2R2MP01 | 2.2μH | ±20% | 2.9 | 2.7 | 90 | ROHS |
| APH201612C3R3MP01 | 3.3μH | ±20% | 2 | 2.3 | 165 | ROHS |
| APH252055CR22MP01 | 0.22μH | ±20% | 6 | 4.5 | 28 | ROHS |
| APH252055CR47MP01 | 0.47μH | ±20% | 5.2 | 3.2 | 49 | ROHS |
| APH252008CR47MP01 | 0.47μH | ±20% | 6 | 5.3 | 27 | ROHS |
| APH252008C1R0MP01 | 1μH | ±20% | 4 | 4 | 40 | ROHS |
| APH252008C1R5MP01 | 1.5μH | ±20% | 3 | 3 | 75 | ROHS |
| APH252008C2R2MP01 | 2.2μH | ±20% | 2.6 | 2.6 | 77 | ROHS |
| APH252008C3R3MP01 | 3.3μH | ±20% | 2.1 | 2.1 | 180 | ROHS |
| APH252008C4R7MP01 | 4.7μH | ±20% | 1.5 | 1.5 | 215 | ROHS |
| APH252008C100MP01 | 10μH | ±20% | 1.2 | 0.9 | 600 | ROHS |
| APH252010CR22MP01 | 0.22μH | ±20% | 6.5 | 7.9 | 17 | ROHS |
| APH252010CR24MP01 | 0.24μH | ±20% | 6.4 | 7.8 | 17.5 | ROHS |
| APH252010CR33MP01 | 0.33μH | ±20% | 6.2 | 7.2 | 19 | ROHS |
| APH252010CR47MP01 | 0.47μH | ±20% | 5.6 | 6.5 | 22 | ROHS |
| APH252010CR47MP02 | 0.47μH | ±20% | 6 | 6 | 15 | ROHS |
| APH252010CR68MP01 | 0.68μH | ±20% | 5 | 5.5 | 27 | ROHS |
| APH252010CR82MP01 | 0.82μH | ±20% | 4.1 | 4.8 | 29 | ROHS |
| APH252010C1R0MP01 | 1μH | ±20% | 4.1 | 4.8 | 30 | ROHS |
| APH252010C1R5MP01 | 1.5μH | ±20% | 3 | 3.9 | 55 | ROHS |
| APH252010C2R2MP01 | 2.2μH | ±20% | 2.1 | 3 | 70 | ROHS |
| APH252010C2R2MP03 | 2.2μH | ±20% | 2.3 | 3.3 | 70 | ROHS |
| APH252010C2R2MP02 | 2.2μH | ±20% | 3.2 | 3.1 | 70 | ROHS |
| APH252010C3R3MP01 | 3.3μH | ±20% | 2.1 | 2.5 | 100 | ROHS |
| APH252010C4R7MP01 | 4.7μH | ±20% | 1.6 | 2 | 180 | ROHS |
| APH252010C4R7MP02 | 4.7μH | ±20% | 1.6 | 2 | 160 | ROHS |
| APH252010C4R7MP03 | 4.7μH | ±20% | 2.8 | 2 | 130 | ROHS |
| APH252010C6R8MP01 | 6.8μH | ±20% | 1.4 | 1.9 | 320 | ROHS |
| APH252010C100MP01 | 10μH | ±20% | 0.95 | 1.4 | 560 | ROHS |
| APH252012CR10MP01 | 0.1μH | ±20% | 10.5 | 12.5 | 10 | ROHS |
| APH252012CR15MP01 | 0.15μH | ±20% | 10 | 12 | 11 | ROHS |
| APH252012CR22MP01 | 0.22μH | ±20% | 7.6 | 9 | 14 | ROHS |
| APH252012CR22MP02 | 0.22μH | ±20% | 8 | 10 | 10 | ROHS |
| APH252012CR24MP01 | 0.24μH | ±20% | 7.5 | 8.8 | 15 | ROHS |
| APH252012CR33MP01 | 0.33μH | ±20% | 6.4 | 7.8 | 17 | ROHS |
| APH252012CR47MP01 | 0.47μH | ±20% | 6 | 7 | 19 | ROHS |
| APH252012CR47MP02 | 0.47μH | ±20% | 7.5 | 8 | 13 | ROHS |
| APH252012CR68MP01 | 0.68μH | ±20% | 5.5 | 6 | 23 | ROHS |
| APH252012CR68MP02 | 0.68μH | ±20% | 7 | 6 | 18 | ROHS |
| APH252012CR82MP01 | 0.82μH | ±20% | 5.3 | 5.8 | 24 | ROHS |
| APH252012C1R0MP01 | 1μH | ±20% | 3.6 | 5 | 42 | ROHS |
| APH252012C1R0MP02 | 1μH | ±20% | 4.5 | 6 | 22 | ROHS |
| APH252012C1R0MP03 | 1μH | ±20% | 5 | 5 | 36 | ROHS |
| APH252012C1R2MP01 | 1.2μH | ±20% | 3.4 | 4.1 | 45 | ROHS |
| APH252012C1R5MP01 | 1.5μH | ±20% | 3.2 | 4.1 | 50 | ROHS |
| APH252012C1R5MP02 | 1.5μH | ±20% | 4.2 | 4.4 | 32 | ROHS |
| APH252012C2R2MP01 | 2.2μH | ±20% | 2.7 | 3.3 | 65 | ROHS |
| APH252012C3R3MP01 | 3.3μH | ±20% | 1.8 | 2.7 | 97 | ROHS |
| APH252012C4R7MP01 | 4.7μH | ±20% | 1.5 | 2.1 | 170 | ROHS |
| APH252012C6R8MP01 | 6.8μH | ±20% | 1.4 | 1.7 | 270 | ROHS |
| APH252012C100MP01 | 10μH | ±20% | 1.05 | 1.45 | 400 | ROHS |
| APH252012C150MP01 | 15μH | ±20% | 1.3 | 1.3 | 565 | ROHS |
| APH252012C220MP01 | 22μH | ±20% | 1.1 | 1 | 800 | ROHS |
| APH322510CR22MP01 | 0.22μH | ±20% | 8 | 8 | 11 | ROHS |
| APH322510CR33MP01 | 0.33μH | ±20% | 7.8 | 7.8 | 15 | ROHS |
| APH322510CR47MP01 | 0.47μH | ±20% | 5.9 | 7.6 | 22 | ROHS |
| APH322510CR68MP01 | 0.68μH | ±20% | 5.7 | 7 | 28 | ROHS |
| APH322510C1R0MP01 | 1μH | ±20% | 4.9 | 5.3 | 30 | ROHS |
| APH322510C1R5MP01 | 1.5μH | ±20% | 3.6 | 4.4 | 42 | ROHS |
| APH322510C2R2MP01 | 2.2μH | ±20% | 3.4 | 3.5 | 66 | ROHS |
| APH322510C3R3MP01 | 3.3μH | ±20% | 2.3 | 3.3 | 120 | ROHS |
| APH322510C4R7MP01 | 4.7μH | ±20% | 1.9 | 2.5 | 140 | ROHS |
| APH322510C6R8MP01 | 6.8μH | ±20% | 1.6 | 2 | 320 | ROHS |
| APH322510C100MP01 | 10μH | ±20% | 1.8 | 1.8 | 365 | ROHS |
| APH322512CR10MP01 | 0.1μH | ±20% | 11 | 16.5 | 7 | ROHS |
| APH322512CR22MP01 | 0.22μH | ±20% | 8.7 | 11 | 10 | ROHS |
| APH322512CR24MP01 | 0.24μH | ±20% | 8.5 | 10.5 | 12 | ROHS |
| APH322512CR33MP01 | 0.33μH | ±20% | 8.1 | 9.5 | 14 | ROHS |
| APH322512CR47MP01 | 0.47μH | ±20% | 7.2 | 8.2 | 19 | ROHS |
| APH322512CR47MP02 | 0.47μH | ±20% | 7.2 | 8.2 | 14 | ROHS |
| APH322512CR47MP03 | 0.47μH | ±20% | 8 | 8 | 11 | ROHS |
| APH322512CR68MP01 | 0.68μH | ±20% | 6.8 | 7.7 | 23 | ROHS |
| APH322512CR68MP02 | 0.68μH | ±20% | 6.5 | 7.5 | 15 | ROHS |
| APH322512C1R0MP01 | 1μH | ±20% | 4.8 | 5.8 | 30 | ROHS |
| APH322512C1R0MP02 | 1μH | ±20% | 5 | 7 | 21 | ROHS |
| APH322512C1R5MP01 | 1.5μH | ±20% | 4.3 | 4.7 | 44 | ROHS |
| APH322512C2R2MP01 | 2.2μH | ±20% | 3 | 4.2 | 70 | ROHS |
| APH322512C2R2MP02 | 2.2μH | ±20% | 3.7 | 4.5 | 50 | ROHS |
| APH322512C3R3MP01 | 3.3μH | ±20% | 2.5 | 3.2 | 95 | ROHS |
| APH322512C4R7MP01 | 4.7μH | ±20% | 2 | 2.6 | 135 | ROHS |
| APH322512C4R7MP03 | 4.7μH | ±20% | 2.1 | 2.6 | 120 | ROHS |
| APH322512C6R8MP01 | 6.8μH | ±20% | 1.9 | 2.4 | 210 | ROHS |
| APH322512C100MP01 | 10μH | ±20% | 1.8 | 1.9 | 230 | ROHS |
| APH322520CR27MP01 | 0.27μH | ±20% | 15 | 15 | 6.5 | ROHS |
| APH322520CR33MP01 | 0.33μH | ±20% | 9 | 14 | 9 | ROHS |
| APH322520CR47MP01 | 0.47μH | ±20% | 8.5 | 13 | 10.5 | ROHS |
| APH322520CR68MP01 | 0.68μH | ±20% | 8 | 11 | 14.5 | ROHS |
| APH322520C1R0MP01 | 1μH | ±20% | 7.5 | 8.3 | 17.5 | ROHS |
| APH322520C1R5MP01 | 1.5μH | ±20% | 6 | 6 | 25 | ROHS |
| APH322520C2R2MP01 | 2.2μH | ±20% | 4.8 | 5.5 | 43 | ROHS |
| APH322520C3R3MP01 | 3.3μH | ±20% | 4 | 3.5 | 60 | ROHS |
