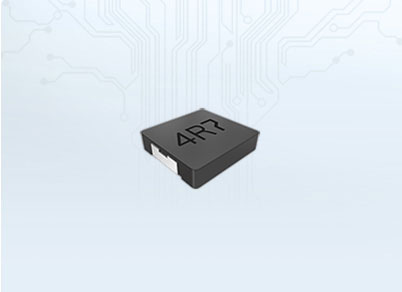

APH系列-常规一体成型电感
●全屏蔽性结构。
●有较强的抵御高瞬态尖峰电流的能力。
●封装中模制高度最低。
●采用复合结构，超低蜂鸣噪音。
●高密度封装，有较好的防潮性和环保性。
●耐腐蚀封装。
●工作温度：-40℃～+125℃。
| Part Number | Inductance
@100kHz,1V | Inductance
Tolerance | Heat Rating Current Max. | Saturation Current Max. | DC Resistance Typ. | RoHS |
|---|
| Units | μH | - | A | A | mΩ | - |
|---|
| Symbol | L | - | Irms | Isat | DCR | - |
|---|
| APH1050T2R2M | 2.2μH | ±20% | 13.47 | 17.13 | 6 | RoHS |
| APH1050T1R5M | 1.5μH | ±20% | 18.88 | 22.45 | 3.8 | RoHS |
| APH1050T1R0M | 1μH | ±20% | 20.71 | 28.30 | 3 | RoHS |
| APH1050TR68M | 0.68μH | ±20% | 21.30 | 34.45 | 1.95 | RoHS |
| APH1050TR22M | 0.22μH | ±20% | 33.18 | 58.63 | 0.8 | RoHS |
| APH1040T101M | 100μH | ±20% | 1.83 | 2.13 | 340 | RoHS |
| APH1040T820M | 82μH | ±20% | 2.13 | 2.38 | 285 | RoHS |
| APH1040T680M | 68μH | ±20% | 2.08 | 2.49 | 195 | RoHS |
| APH1040T470M | 47μH | ±20% | 2.88 | 3.16 | 145 | RoHS |
| APH1040T330M | 33μH | ±20% | 3.89 | 3.98 | 92 | RoHS |
| APH1040T220M | 22μH | ±20% | 4.32 | 4.57 | 66 | RoHS |
| APH1040T150M | 15μH | ±20% | 5.74 | 5.81 | 45 | RoHS |
| APH1040T100M | 10μH | ±20% | 7.04 | 7.06 | 30 | RoHS |
| APH1040T8R2M | 8.2μH | ±20% | 6.98 | 7.47 | 27 | RoHS |
| APH1040T6R8M | 6.8μH | ±20% | 7.23 | 9.96 | 25 | RoHS |
| APH1040T4R7M | 4.7μH | ±20% | 7.73 | 10.79 | 20 | RoHS |
| APH1040T3R3M | 3.3μH | ±20% | 9.73 | 13.28 | 11.8 | RoHS |
| APH1040T2R2M | 2.2μH | ±20% | 10.30 | 13.70 | 8 | RoHS |
| APH1040T1R5M | 1.5μH | ±20% | 14.30 | 19.92 | 5.5 | RoHS |
| APH1040T1R0M | 1μH | ±20% | 16.45 | 23.24 | 4.3 | RoHS |
| APH1040TR80M | 0.8μH | ±20% | 19.60 | 24.07 | 2.7 | RoHS |
| APH1040TR68M | 0.68μH | ±20% | 19.60 | 24.90 | 2.4 | RoHS |
| APH1040TR56M | 0.56μH | ±20% | 20.75 | 27.39 | 1.8 | RoHS |
| APH1040TR47M | 0.47μH | ±20% | 25.75 | 33.20 | 1.7 | RoHS |
| APH1040TR45M | 0.45μH | ±20% | 25.75 | 35.35 | 1.5 | RoHS |
| APH1040TR36M | 0.36μH | ±20% | 25.75 | 37.35 | 1.2 | RoHS |
| APH1040TR30M | 0.3μH | ±20% | 30.75 | 37.35 | 1.1 | RoHS |
| APH1040TR22M | 0.22μH | ±20% | 30.75 | 49.80 | 1 | RoHS |
| APH1040TR15M | 0.15μH | ±20% | 40.75 | 62.25 | 0.65 | RoHS |
| APH1040TR13M | 0.13μH | ±20% | 64.35 | 67.35 | 0.52 | RoHS |
| APH1030T330M | 33μH | ±20% | 2.35 | 3.60 | 160 | RoHS |
| APH1030T100M | 10μH | ±20% | 4.06 | 5.86 | 55 | RoHS |
| APH1030T8R2M | 8.2μH | ±20% | 4.51 | 6.32 | 45 | RoHS |
| APH1030T4R7M | 4.7μH | ±20% | 6.31 | 9.01 | 22.5 | RoHS |
| APH1030T3R3M | 3.3μH | ±20% | 8.12 | 10.82 | 16 | RoHS |
| APH1030T2R2M | 2.2μH | ±20% | 9.92 | 12.62 | 9 | RoHS |
| APH1030T1R5M | 1.5μH | ±20% | 11.73 | 18.04 | 7.5 | RoHS |
| APH1030T1R0M | 1μH | ±20% | 13.53 | 18.94 | 6 | RoHS |
| APH1030TR82M | 0.82μH | ±20% | 16.24 | 20.75 | 3.7 | RoHS |
| APH1030TR47M | 0.47μH | ±20% | 19.85 | 23.45 | 2.5 | RoHS |
| APH1030TR36M | 0.36μH | ±20% | 20.75 | 25.28 | 1.6 | RoHS |
| APH1030TR33M | 0.33μH | ±20% | 20.75 | 28.86 | 1.6 | RoHS |
| APH1030TR22M | 0.22μH | ±20% | 29.77 | 45.10 | 1.2 | RoHS |
| APH0850T101M | 100μH | ±20% | #REF! | #REF! | 400 | RoHS |
| APH0850T680M | 68μH | ±20% | #REF! | #REF! | 300 | RoHS |
| APH0850T560M | 56μH | ±20% | #REF! | #REF! | 185 | RoHS |
| APH0850T470M | 47μH | ±20% | #REF! | #REF! | 190 | RoHS |
| APH0850T330M | 33μH | ±20% | #REF! | #REF! | 140 | RoHS |
| APH0850T220M | 22μH | ±20% | #REF! | #REF! | 82 | RoHS |
| APH0850T150M | 15μH | ±20% | #REF! | #REF! | 52 | RoHS |
| APH0850T100M | 10μH | ±20% | #REF! | #REF! | 38 | RoHS |
| APH0850T6R8M | 6.8μH | ±20% | #REF! | #REF! | 28 | RoHS |
| APH0850T4R7M | 4.7μH | ±20% | #REF! | #REF! | 22 | RoHS |
| APH0850T3R3M | 3.3μH | ±20% | #REF! | #REF! | 15 | RoHS |
| APH0850T2R2M | 2.2μH | ±20% | #REF! | #REF! | 10 | RoHS |
| APH0840T470M | 47μH | ±20% | 2.56 | 2.93 | 225 | RoHS |
| APH0840T330M | 33μH | ±20% | 3.08 | 3.33 | 156 | RoHS |
| APH0840T220M | 22μH | ±20% | 4.29 | 4.58 | 113 | RoHS |
| APH0840T150M | 15μH | ±20% | 4.89 | 4.99 | 71 | RoHS |
| APH0840T100M | 10μH | ±20% | 5.65 | 7.15 | 59 | RoHS |
| APH0840T8R2M | 8.2μH | ±20% | 6.15 | 7.85 | 46 | RoHS |
| APH0840T6R8M | 6.8μH | ±20% | 7.15 | 8.15 | 36.8 | RoHS |
| APH0840T5R6M | 5.6μH | ±20% | 8.15 | 10.15 | 30 | RoHS |
| APH0840T4R7M | 4.7μH | ±20% | 8.65 | 10.65 | 26.5 | RoHS |
| APH0840T3R3M | 3.3μH | ±20% | 10.30 | 11.23 | 15 | RoHS |
| APH0840T2R2M | 2.2μH | ±20% | 12.30 | 12.30 | 11.4 | RoHS |
| APH0840T1R8M | 1.8μH | ±20% | 12.88 | 13.73 | 11 | RoHS |
| APH0840T1R5M | 1.5μH | ±20% | 15.30 | 15.30 | 7.6 | RoHS |
| APH0840T1R0M | 1μH | ±20% | 17.30 | 17.30 | 4.62 | RoHS |
| APH0840TR82M | 0.82μH | ±20% | 19.30 | 19.30 | 4.4 | RoHS |
| APH0840TR68M | 0.68μH | ±20% | 21.30 | 22.30 | 3.8 | RoHS |
| APH0840TR56M | 0.56μH | ±20% | 22.30 | 23.45 | 3.2 | RoHS |
| APH0840TR47M | 0.47μH | ±20% | 25.45 | 36.90 | 2.8 | RoHS |
| APH0840TR33M | 0.33μH | ±20% | 25.75 | 40.75 | 2.4 | RoHS |
| APH0840TR22M | 0.22μH | ±20% | 30.90 | 55.75 | 1.8 | RoHS |
| APH0650T470M | 47μH | ±20% | 1.58 | 2.16 | 230 | RoHS |
| APH0650T330M | 33μH | ±20% | 1.88 | 2.49 | 190 | RoHS |
| APH0650T220M | 22μH | ±20% | 2.09 | 2.91 | 140 | RoHS |
| APH0650T150M | 15μH | ±20% | 2.68 | 3.32 | 90 | RoHS |
| APH0650T100M | 10μH | ±20% | 3.91 | 4.40 | 60 | RoHS |
| APH0650T8R2M | 8.2μH | ±20% | 4.91 | 4.57 | 48 | RoHS |
| APH0650T6R8M | 6.8μH | ±20% | 4.27 | 5.23 | 41 | RoHS |
| APH0650T4R7M | 4.7μH | ±20% | 5.15 | 6.64 | 29 | RoHS |
| APH0650T3R3M | 3.3μH | ±20% | 7.74 | 8.30 | 22 | RoHS |
| APH0650T2R2M | 2.2μH | ±20% | 8.15 | 9.13 | 12.5 | RoHS |
| APH0650T1R5M | 1.5μH | ±20% | 8.40 | 10.79 | 10 | RoHS |
| APH0650T1R0M | 1μH | ±20% | 10.30 | 13.28 | 6.6 | RoHS |
| APH0650TR68M | 0.68μH | ±20% | 14.80 | 14.94 | 4.5 | RoHS |
| APH0650TR47M | 0.47μH | ±20% | 17.45 | 17.43 | 3.9 | RoHS |
| APH0640T470M | 47μH | ±20% | 1.48 | 2.08 | 320 | RoHS |
| APH0640T330M | 33μH | ±20% | 1.80 | 2.50 | 240 | RoHS |
| APH0640T220M | 22μH | ±20% | 2.70 | 3.33 | 125 | RoHS |
| APH0640T150M | 15μH | ±20% | 2.94 | 3.74 | 95 | RoHS |
| APH0640T100M | 10μH | ±20% | 3.93 | 5.00 | 65 | RoHS |
| APH0640T6R8M | 6.8μH | ±20% | 4.51 | 5.42 | 45 | RoHS |
| APH0640T4R7M | 4.7μH | ±20% | 6.08 | 7.47 | 30 | RoHS |
| APH0640T3R3M | 3.3μH | ±20% | 6.97 | 7.92 | 20 | RoHS |
| APH0640T2R2M | 2.2μH | ±20% | 8.13 | 9.13 | 14 | RoHS |
| APH0640T1R5M | 1.5μH | ±20% | 10.16 | 10.42 | 10 | RoHS |
| APH0640T1R0M | 1μH | ±20% | 11.07 | 13.33 | 6.6 | RoHS |
