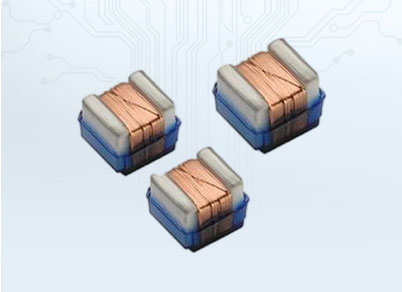

AHW-C系列-陶瓷体绕线精密电感

● 采用陶瓷材料，高Q值、高自谐振频率。

● 小芯片适合表面贴装。

● 电感容差小，可靠性高。

● 工作温度：-40℃~+85℃。

● RoHS、无卤素和REACH 合规性。

下载

Part Number	Inductance	Inductance Tolerance	L/Q Test Freq.	Heat Rating Current Max.	Quality Factor	Self-resonant Frequency	DC Resistance Max.	RoHS
Units	nH/μH	-	MHz	mA	-	MHz	Ω	-
Symbol	L	-	Freq.	Irms	Q	S.R.F	DCR	-

AHW2012C-82NJTF	82nH	±5%	150	400	65@500MHz	1330	0.42	RoHS
AHW2012C-91NJTF	91nH	±5%	150	400	65@500MHz	1330	0.48	RoHS
AHW2012C-R10JTF	100nH	±5%	150	400	65@500MHz	1250	0.46	RoHS
AHW2012C-R11JTF	110nH	±5%	150	400	50@250MHz	1100	0.48	RoHS
AHW2012C-R12JTF	120nH	±5%	150	400	50@250MHz	1100	0.51	RoHS
AHW2012C-R13JTF	130nH	±5%	100	400	50@250MHz	920	0.56	RoHS
AHW2012C-R14JTF	140nH	±5%	100	400	50@250MHz	920	0.56	RoHS
AHW2012C-R15JTF	150nH	±5%	100	400	50@250MHz	920	0.56	RoHS
AHW2012C-R16JTF	160nH	±5%	100	400	50@250MHz	920	0.6	RoHS
AHW2012C-R18JTF	180nH	±5%	100	400	50@250MHz	920	0.64	RoHS
AHW2012C-R20JTF	200nH	±5%	100	400	50@250MHz	860	0.68	RoHS
AHW2012C-R21JTF	210nH	±5%	100	400	50@250MHz	820	0.7	RoHS
AHW2012C-R22JTF	220nH	±5%	100	400	50@250MHz	820	0.7	RoHS
AHW2012C-R24JTF	240nH	±5%	100	350	44@250MHz	770	1	RoHS
AHW2012C-R25JTF	250nH	±5%	100	350	45@250MHz	750	1.2	RoHS
AHW2012C-R27JTF	270nH	±5%	100	350	48@250MHz	730	1	RoHS
AHW2012C-R28JTF	280nH	±5%	100	350	48@250MHz	550	1.35	RoHS
AHW2012C-R29JTF	290nH	±5%	150	310	48@250MHz	450	1.4	RoHS
AHW2012C-R30JTF	300nH	±5%	150	310	48@250MHz	450	1.4	RoHS
AHW2012C-R33JTF	330nH	±5%	100	310	48@250MHz	650	1.4	RoHS
AHW2012C-R36JTF	360nH	±5%	100	300	48@250MHz	630	1.45	RoHS
AHW2012C-R39JTF	390nH	±5%	100	290	48@250MHz	600	1.5	RoHS
AHW2012C-R42JTF	420nH	±5%	50	250	33@100MHz	425	1.7	RoHS
AHW2012C-R43JTF	430nH	±5%	50	250	33@100MHz	425	1.7	RoHS
AHW2012C-R47JTF	470nH	±5%	50	250	33@100MHz	375	1.76	RoHS
AHW2012C-R56JTF	560nH	±5%	25	230	23@50MHz	330	1.9	RoHS
AHW2012C-R62JTF	620nH	±5%	25	210	23@50MHz	320	2.2	RoHS
AHW2012C-R68JTF	680nH	±5%	25	190	23@50MHz	310	2.2	RoHS
AHW2012C-R75JTF	750nH	±5%	25	180	23@50MHz	310	2.3	RoHS
AHW2012C-R82JTF	820nH	±5%	25	180	23@50MHz	310	2.35	RoHS
AHW2012C-R88JTF	880nH	±5%	25	180	23@50MHz	310	2.35	RoHS
AHW2012C-R91JTF	910nH	±5%	25	170	22@50MHz	250	2.45	RoHS
AHW2012C-1R0JTF	1000nH	±5%	25	170	20@50MHz	220	2.5	RoHS
AHW2012C-1R2JTF	1200nH	±5%	25	150	20@25MHz	180	2.9	RoHS
AHW2012C-1R5JTF	1500nH	±5%	25	150	20@25MHz	160	3.3	RoHS
AHW2012C-1R6JTF	1600nH	±5%	25	150	20@25MHz	140	3.4	RoHS
AHW2012C-1R8JTF	1800nH	±5%	25	120	20@25MHz	130	3.5	RoHS
AHW2012C-2R2JTF	2200nH	±5%	25	120	20@25MHz	100	4.5	RoHS
AHW2012C-2R7JTF	2700nH	±5%	25	100	18@25MHz	80	4.8	RoHS
AHW2012C-3R3JTF	3300nH	±5%	25	50	18@25MHz	50	6.8	RoHS
AHW2012C-4R7JTF	4700nH	±5%	25	30	18@25MHz	40	7	RoHS
AHW2520C-22NJTF	22nH	±5%	50	1000	55@150MHz	2400	0.12	RoHS
AHW2520C-39NJTF	39nH	±5%	50	1000	60@150MHz	1500	0.15	RoHS
AHW2520C-47NJTF	47nH	±5%	50	1000	65@150MHz	1500	0.16	RoHS
AHW2520C-56NJTF	56nH	±5%	50	1000	65@150MHz	1300	0.18	RoHS
AHW2520C-68NJTF	68nH	±5%	50	1000	65@150MHz	1300	0.2	RoHS
AHW2520C-91NJTF	91nH	±5%	50	650	60@150MHz	1000	0.56	RoHS
AHW2520C-R10JTF	100nH	±5%	25	650	60@150MHz	1000	0.56	RoHS
AHW2520C-R12JTF	120nH	±5%	25	650	60@150MHz	950	0.63	RoHS
AHW2520C-R15JTF	150nH	±5%	25	580	45@100MHz	850	0.7	RoHS
AHW2520C-R18JTF	180nH	±5%	25	620	45@100MHz	750	0.77	RoHS
AHW2520C-R20JTF	200nH	±5%	25	500	45@100MHz	700	0.84	RoHS
AHW2520C-R22JTF	220nH	±5%	25	500	45@100MHz	700	0.84	RoHS
AHW2520C-R27JTF	270nH	±5%	25	500	45@100MHz	600	0.91	RoHS
AHW2520C-R33JTF	330nH	±5%	25	450	45@100MHz	570	1.05	RoHS
AHW2520C-R39JTF	390nH	±5%	25	470	45@100MHz	500	1. 12	RoHS
AHW2520C-R47JTF	470nH	±5%	25	470	45@100MHz	450	1. 19	RoHS
AHW2520C-R56JTF	560nH	±5%	25	400	45@100MHz	415	1.33	RoHS
AHW2520C-R68JTF	680nH	±5%	25	400	45@100MHz	375	1.47	RoHS
AHW2520C-R82JTF	820nH	±5%	25	400	45@100MHz	350	1.61	RoHS
AHW2520C-R91JTF	910nH	±5%	25	380	35@50MHz	320	1.68	RoHS
AHW2520C-1R0JTF	1000nH	±5%	25	370	35@50MHz	290	1.8	RoHS
AHW2520C-1R2JTF	1200nH	±5%	7.9	310	35@50MHz	250	2	RoHS
AHW2520C-1R5JTF	1500nH	±5%	7.9	330	28@50MHZ	200	2.3	RoHS
AHW2520C-1R8JTF	1800nH	±5%	7.9	300	28@50MHZ	160	2.6	RoHS
AHW2520C-2R2JTF	2200nH	±5%	7.9	280	28@50MHZ	160	2.8	RoHS
AHW2520C-2R7JTF	2700nH	±5%	7.9	290	22@25MHz	140	3.2	RoHS
AHW2520C-3R3JTF	3300nH	±5%	7.9	290	22@25MHz	110	3.4	RoHS
AHW2520C-3R9JTF	3900nH	±5%	7.9	260	20@25MHz	100	3.6	RoHS
AHW2520C-4R7JTF	4700nH	±5%	7.9	260	20@7.9MHz	60	4	RoHS
AHW2520C-5R6JTF	5600nH	±5%	7.9	240	16@7.9MHz	20	5.7	RoHS
AHW2520C-6R8JTF	6800nH	±5%	7.9	200	18@7.9MHz	40	7.7	RoHS
AHW2520C-8R2JTF	8200nH	±5%	7.9	170	18@7.9MHz	25	10.7	RoHS
AHW2520C-100JTF	10000nH	±5%	7.9	100	18@7.9MHz	25	12.7	RoHS
AHW3225C-10NJTF	10nH	±5%	100	1000	40@300MHZ	4000	0.08	RoHS
AHW3225C-12NJTF	12nH	±5%	100	1000	40@300MHZ	3200	0.08	RoHS
AHW3225C-15NJTF	15nH	±5%	100	1000	40@300MHZ	3200	0.2	RoHS
AHW3225C-18NJTF	18nH	±5%	100	1000	50@300MHZ	2800	0.1	RoHS
AHW3225C-22NJTF	22nH	±5%	100	1000	50@300MHZ	2200	0.1	RoHS
AHW3225C-27NJTF	27nH	±5%	100	1000	50@300MHZ	1800	0.11	RoHS
AHW3225C-33NJTF	33nH	±5%	100	1000	55@300MHZ	1800	0.11	RoHS
AHW3225C-39NJTF	39nH	±5%	100	1000	55@300MHZ	1500	0.12	RoHS
AHW3225C-43NJTF	43nH	±5%	100	1000	55@300MHZ	1500	0.12	RoHS
AHW3225C-47NJTF	47nH	±5%	100	1000	55@300MHZ	1500	0.13	RoHS
AHW3225C-56NJTF	56nH	±5%	100	1000	55@300MHZ	1450	0.14	RoHS
AHW3225C-68NJTF	68nH	±5%	100	900	55@300MHZ	1200	0.15	RoHS
AHW3225C-82NJTF	82nH	±5%	100	900	55@300MHZ	1000	0.2	RoHS
AHW3225C-91NJTF	91nH	±5%	100	1000	60@300MHZ	1100	0.2	RoHS
AHW3225C-R10JTF	100nH	±5%	100	850	55@300MHZ	900	0.2	RoHS
AHW3225C-R12JTF	120nH	±5%	100	800	60@300MHZ	800	0.25	RoHS
AHW3225C-R15JTF	150nH	±5%	100	750	60@300MHZ	700	0.3	RoHS
AHW3225C-R18JTF	180nH	±5%	50	700	60@300MHZ	650	0.3	RoHS
AHW3225C-R22JTF	220nH	±5%	50	770	60@300MHZ	650	0.4	RoHS
AHW3225C-R24JTF	240nH	±5%	50	630	40@300MHZ	580	0.4	RoHS
AHW3225C-R27JTF	270nH	±5%	50	630	40@300MHZ	580	0.4	RoHS
AHW3225C-R33JTF	330nH	±5%	50	590	45@150MHZ	580	0.58	RoHS
AHW3225C-R36JTF	360nH	±5%	50	530	45@150MHZ	510	0.58	RoHS
AHW3225C-R39JTF	390nH	±5%	50	530	45@150MHZ	510	0.58	RoHS
AHW3225C-R47JTF	470nH	±5%	50	490	45@150MHZ	480	1	RoHS
AHW3225C-R56JTF	560nH	±5%	25	460	45@150MHZ	420	1.1	RoHS
