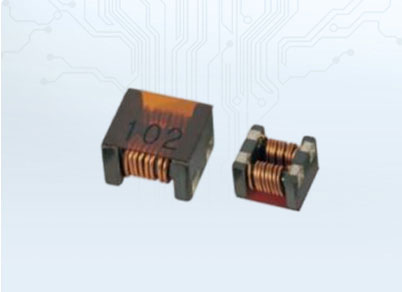

共模滤波器 PACM系列
● 适用于大电流应用的芯片型共模滤波器。
● 尺寸更小，薄型化。
● 非常适合抑制噪音。
● 工作温度：-40℃~+125℃。
| Part Number | Common mode
Impedance @100MHz | Common mode
Impedance @100MHz | DC
Resistance
Max. | Heat Rating
Current Max. | Rated Voltage | Insulation
Resistance Min. | Marking | RoHS |
|---|
| Units | Ω | Ω | mΩ | A | Volts | MΩ | - | - |
|---|
| Symbol | Z Min. | Z Typ. | DCR | Irms | VDC | IR | - | - |
|---|
| PACM1513-102-F | 800Ω | 1000Ω | 12 | 10.0 | 80 | 10 | 102 | RoHS |
| PACM1513-701-F | 500Ω | 700Ω | 7 | 10.0 | 80 | 10 | 701 | RoHS |
| PACM1513-601-F | 500Ω | 600Ω | 7 | 10.0 | 80 | 10 | 601 | RoHS |
| PACM1513-551-F | 450Ω | 550Ω | 6 | 10.0 | 80 | 10 | 551 | RoHS |
| PACM1513-301-F | 250Ω | 300Ω | 5 | 13.0 | 80 | 10 | 301 | RoHS |
| PACM1513-102-M | 800Ω | 1000Ω | 12 | 10.0 | 80 | 10 | 102 | RoHS |
| PACM1513-701-M | 500Ω | 700Ω | 7 | 10.0 | 80 | 10 | 701 | RoHS |
| PACM1513-601-M | 500Ω | 600Ω | 7 | 10.0 | 80 | 10 | 601 | RoHS |
| PACM1513-551-M | 450Ω | 550Ω | 6 | 10.0 | 80 | 10 | 551 | RoHS |
| PACM1513-301-M | 250Ω | 300Ω | 5 | 13.0 | 80 | 10 | 301 | RoHS |
| PACM1211-782-AM | 5400Ω | 7800Ω | 182 | 2.0 | 125 | 10 | 782 | RoHS |
| PACM1211-532-AM | 3700Ω | 5300Ω | 109 | 2.5 | 125 | 10 | 532 | RoHS |
| PACM1211-222-AM | 1400Ω | 2200Ω | 43 | 4.0 | 125 | 10 | 222 | RoHS |
| PACM1211-202-AM | 1300Ω | 2000Ω | 33 | 4.5 | 125 | 10 | 202 | RoHS |
| PACM1211-172-AM | 1100Ω | 1700Ω | 26 | 5.5 | 125 | 10 | 172 | RoHS |
| PACM1211-272-F | 2300Ω | 2700Ω | 50 | 1.5 | 125 | 10 | 272 | RoHS |
| PACM1211-222-F | 2200Ω | 2500Ω | 35 | 1.8 | 125 | 10 | 222 | RoHS |
| PACM1211-102-F | 750Ω | 1000Ω | 14 | 6.0 | 125 | 10 | 102 | RoHS |
| PACM1211-801-F | 600Ω | 800Ω | 8 | 8.0 | 125 | 10 | 801 | RoHS |
| PACM1211-701-F | 500Ω | 700Ω | 6 | 8.0 | 125 | 10 | 701 | RoHS |
| PACM1211-501-F | 300Ω | 500Ω | 6 | 8.0 | 125 | 10 | 501 | RoHS |
| PACM1211-301-F | 200Ω | 300Ω | 4 | 9.0 | 125 | 10 | 301 | RoHS |
| PACM1211-800-F | 80Ω | 230Ω | 2 | 10.0 | 125 | 10 | 800 | RoHS |
| PACM1211-272-M | 2300Ω | 2700Ω | 50 | 1.5 | 125 | 10 | 272 | RoHS |
| PACM1211-222-M | 2200Ω | 2500Ω | 35 | 1.8 | 125 | 10 | 222 | RoHS |
| PACM1211-102-M | 750Ω | 1000Ω | 14 | 6.0 | 125 | 10 | 102 | RoHS |
| PACM1211-801-M | 600Ω | 800Ω | 8 | 8.0 | 125 | 10 | 801 | RoHS |
| PACM1211-701-M | 500Ω | 700Ω | 6 | 8.0 | 125 | 10 | 701 | RoHS |
| PACM1211-501-M | 300Ω | 500Ω | 6 | 8.0 | 125 | 10 | 501 | RoHS |
| PACM1211-301-M | 200Ω | 300Ω | 4 | 9.0 | 125 | 10 | 301 | RoHS |
| PACM1211-800-M | 80Ω | 230Ω | 2 | 10.0 | 125 | 10 | 800 | RoHS |
| PACM9070-322-AM | 2200Ω | 3200Ω | 125 | 2.0 | 50 | 10 | 322 | RoHS |
| PACM9070-152-AM | 600Ω | 1500Ω | 50 | 3.0 | 50 | 10 | 152 | RoHS |
| PACM9070-302-F | 2500Ω | 3000Ω | 80 | 2.0 | 80 | 10 | 302 | RoHS |
| PACM9070-272-F | 2000Ω | 2700Ω | 80 | 2.0 | 80 | 10 | 272 | RoHS |
| PACM9070-222-F | 1700Ω | 2200Ω | 50 | 3.0 | 80 | 10 | 222 | RoHS |
| PACM9070-102-F | 750Ω | 1000Ω | 13 | 4.0 | 80 | 10 | 102 | RoHS |
| PACM9070-701-F | 500Ω | 700Ω | 10 | 5.0 | 80 | 10 | 701 | RoHS |
| PACM9070-501-F | 450Ω | 600Ω | 8 | 5.5 | 80 | 10 | 501 | RoHS |
| PACM9070-301-F | 225Ω | 300Ω | 6 | 6.0 | 80 | 10 | 301 | RoHS |
| PACM9070-302-M | 2500Ω | 3000Ω | 80 | 2.0 | 80 | 10 | 302 | RoHS |
| PACM9070-272-M | 2000Ω | 2700Ω | 80 | 2.0 | 80 | 10 | 272 | RoHS |
| PACM9070-222-M | 1700Ω | 2200Ω | 50 | 3.0 | 80 | 10 | 222 | RoHS |
| PACM9070-102-M | 750Ω | 1000Ω | 13 | 4.0 | 80 | 10 | 102 | RoHS |
| PACM9070-701-M | 500Ω | 700Ω | 10 | 5.0 | 80 | 10 | 701 | RoHS |
| PACM9070-501-M | 450Ω | 600Ω | 8 | 5.5 | 80 | 10 | 501 | RoHS |
| PACM9070-301-M | 225Ω | 300Ω | 6 | 6.0 | 80 | 10 | 301 | RoHS |
| PACM8080-302-CL | 2500Ω | 3000Ω | 80 | 2.2 | 80 | 10 | 302 | RoHS |
| PACM8080-272-CL | 2000Ω | 2700Ω | 60 | 2.5 | 80 | 10 | 272 | RoHS |
| PACM8080-222-CL | 1700Ω | 2200Ω | 40 | 3.2 | 80 | 10 | 222 | RoHS |
| PACM8080-152-CL | 1200Ω | 1500Ω | 20 | 3.5 | 80 | 10 | 152 | RoHS |
| PACM8080-102-CL | 750Ω | 1000Ω | 15 | 4.5 | 80 | 10 | 102 | RoHS |
| PACM8080-701-CL | 500Ω | 700Ω | 10 | 5.5 | 80 | 10 | 701 | RoHS |
| PACM8080-501-CL | 400Ω | 600Ω | 8 | 6.0 | 80 | 10 | 501 | RoHS |
| PACM8080-301-CL | 200Ω | 300Ω | 6 | 7.0 | 80 | 10 | 301 | RoHS |
| PACM7060-102-FC | 800Ω | 1500Ω | 17 | 3.0 | 50 | 10 | 102 | RoHS |
| PACM7060-701-FC | 500Ω | 700Ω | 15 | 4.0 | 50 | 10 | 701 | RoHS |
| PACM7060-302-F | 2500Ω | 3000Ω | 75 | 0.9 | 125 | 10 | 302 | RoHS |
| PACM7060-272-F | 2000Ω | 2700Ω | 63 | 1.0 | 125 | 10 | 272 | RoHS |
| PACM7060-132-F | 910Ω | 1300Ω | 21 | 2.5 | 125 | 10 | 132 | RoHS |
| PACM7060-102-F | 800Ω | 1020Ω | 17 | 3.0 | 125 | 10 | 102 | RoHS |
| PACM7060-701-F | 500Ω | 700Ω | 15 | 4.0 | 125 | 10 | 701 | RoHS |
| PACM7060-601-F | 500Ω | 700Ω | 15 | 4.0 | 125 | 10 | 601 | RoHS |
| PACM7060-501-F | 275Ω | 450Ω | 10 | 5.0 | 125 | 10 | 501 | RoHS |
| PACM7060-301-F | 225Ω | 300Ω | 10 | 5.0 | 125 | 10 | 301 | RoHS |
| PACM7060-101-F | 100Ω | 140Ω | 10 | 9.0 | 125 | 10 | 101 | RoHS |
| PACM7060-400-F | 40Ω | 70Ω | 5 | 15.0 | 125 | 10 | 400 | RoHS |
| PACM7060-302-M | 2500Ω | 3000Ω | 75 | 0.9 | 125 | 10 | 302 | RoHS |
| PACM7060-272-M | 2000Ω | 2700Ω | 63 | 1.0 | 125 | 10 | 272 | RoHS |
| PACM7060-132-M | 910Ω | 1300Ω | 21 | 2.5 | 125 | 10 | 132 | RoHS |
| PACM7060-102-M | 800Ω | 1020Ω | 17 | 3.0 | 125 | 10 | 102 | RoHS |
| PACM7060-701-M | 500Ω | 700Ω | 15 | 4.0 | 125 | 10 | 701 | RoHS |
| PACM7060-601-M | 500Ω | 700Ω | 15 | 4.0 | 125 | 10 | 601 | RoHS |
| PACM7060-501-M | 275Ω | 450Ω | 10 | 5.0 | 125 | 10 | 501 | RoHS |
| PACM7060-301-M | 225Ω | 300Ω | 10 | 5.0 | 125 | 10 | 301 | RoHS |
| PACM7060-101-M | 100Ω | 140Ω | 10 | 9.0 | 125 | 10 | 101 | RoHS |
| PACM7060-400-M | 40Ω | 70Ω | 5 | 15.0 | 125 | 10 | 400 | RoHS |
| PACM4520-142-F | 1200Ω | 1400Ω | 81 | 1.9 | 50 | 10 | 142 | RoHS |
| PACM4520-122-F | 1000Ω | 1200Ω | 74 | 2.0 | 50 | 10 | 122 | RoHS |
| PACM4520-102-F | 800Ω | 1000Ω | 68 | 2.1 | 50 | 10 | 102 | RoHS |
| PACM4520-901-F | 650Ω | 900Ω | 68 | 2.1 | 50 | 10 | 901 | RoHS |
| PACM4520-701-F | 500Ω | 700Ω | 59 | 2.2 | 50 | 10 | 701 | RoHS |
| PACM4520-421-F | 300Ω | 420Ω | 50 | 2.5 | 50 | 10 | 401 | RoHS |
| PACM4520-301-F | 200Ω | 300Ω | 45 | 3.0 | 50 | 10 | 301 | RoHS |
| PACM4520-231-F | 180Ω | 230Ω | 45 | 3.0 | 50 | 10 | 231 | RoHS |
| PACM4520-151-F | 90Ω | 150Ω | 40 | 3.1 | 50 | 10 | 151 | RoHS |
| PACM4520-900-F | 60Ω | 90Ω | 35 | 3.2 | 50 | 10 | 900 | RoHS |
| PACM4520-142-M | 1200Ω | 1400Ω | 81 | 1.9 | 50 | 10 | 142 | RoHS |
| PACM4520-122-M | 1000Ω | 1200Ω | 74 | 2.0 | 50 | 10 | 122 | RoHS |
| PACM4520-102-M | 800Ω | 1000Ω | 68 | 2.1 | 50 | 10 | 102 | RoHS |
| PACM4520-901-M | 650Ω | 900Ω | 68 | 2.1 | 50 | 10 | 901 | RoHS |
| PACM4520-701-M | 500Ω | 700Ω | 59 | 2.2 | 50 | 10 | 701 | RoHS |
| PACM4520-421-M | 300Ω | 420Ω | 50 | 2.5 | 50 | 10 | 401 | RoHS |
| PACM4520-301-M | 200Ω | 300Ω | 45 | 3.0 | 50 | 10 | 301 | RoHS |
| PACM4520-231-M | 180Ω | 230Ω | 45 | 3.0 | 50 | 10 | 231 | RoHS |
| PACM4520-151-M | 90Ω | 150Ω | 40 | 3.1 | 50 | 10 | 151 | RoHS |
| PACM4520-900-M | 60Ω | 90Ω | 35 | 3.2 | 50 | 10 | 900 | RoHS |
