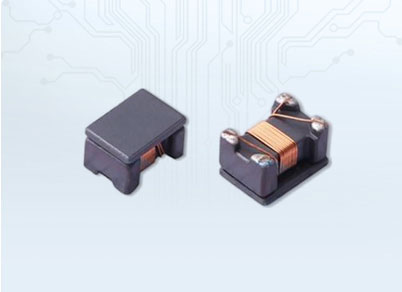

共模滤波器 APCW系列
● 卷绕式实现了小型化、薄型化。
● 优良的可焊性。
● 防止高频共模噪声。
● 工作温度：-40℃~+85℃。
● RoHS、REACH 合规性。
| Part Number | Impedance | Impedance
Tolerance | Rated
Voltage | Test
Freq. | Heat Rating Current Max. | DC Resistance Max. | Insulation Resistance Min. | RoHS |
|---|
| Units | Ω | - | Volts | MHz | mA | Ω | MΩ | - |
|---|
| Symbol | Z | - | VDC | Freq. | Irms | DCR | IR | - |
|---|
| APCW4532-142P2T | 1400Ω | ±25% | 50 | 100 | 700 | 0.2 | 10 | RoHS |
| APCW4532-102P2T | 1000Ω | ±25% | 50 | 100 | 800 | 0.18 | 10 | RoHS |
| APCW4532-901P2T | 900Ω | ±25% | 50 | 100 | 1000 | 0.17 | 10 | RoHS |
| APCW4532-801P2T | 800Ω | ±25% | 50 | 100 | 900 | 0.16 | 10 | RoHS |
| APCW4532-701P2T | 700Ω | ±25% | 50 | 100 | 1500 | 0.12 | 10 | RoHS |
| APCW4532-601P2T | 600Ω | ±25% | 50 | 100 | 1000 | 0.12 | 10 | RoHS |
| APCW4532-331P2T | 330Ω | ±25% | 50 | 100 | 1100 | 0.11 | 10 | RoHS |
| APCW4532-221P2T | 220Ω | ±25% | 50 | 100 | 1300 | 0.1 | 10 | RoHS |
| APCW4532-201P2T | 200Ω | ±25% | 50 | 100 | 1500 | 0.1 | 10 | RoHS |
| APCW4532-121P2T | 120Ω | ±25% | 50 | 100 | 3000 | 0.1 | 10 | RoHS |
| APCW4532-900P2T | 90Ω | ±25% | 50 | 100 | 3000 | 0.09 | 10 | RoHS |
| APCW4532-800P2T | 80Ω | ±25% | 50 | 100 | 3000 | 0.05 | 10 | RoHS |
| APCW3225-102P2T | 1000Ω | ±25% | 50 | 100 | 480 | 0.35 | 10 | RoHS |
| APCW3225-801P2T | 800Ω | ±25% | 50 | 100 | 350 | 0.35 | 10 | RoHS |
| APCW3225-601P2T | 600Ω | ±25% | 50 | 100 | 1000 | 0.2 | 10 | RoHS |
| APCW3225-501P2T | 500Ω | ±25% | 50 | 100 | 1000 | 0.3 | 10 | RoHS |
| APCW3225-271P2T | 270Ω | ±25% | 50 | 100 | 450 | 0.25 | 10 | RoHS |
| APCW3225-161P2T | 160Ω | ±25% | 50 | 100 | 480 | 0.15 | 10 | RoHS |
| APCW3225-800P2T | 80Ω | ±25% | 50 | 100 | 640 | 0.12 | 10 | RoHS |
| APCW3216-222P2T | 2200Ω | ±25% | 50 | 100 | 200 | 1.2 | 10 | RoHS |
| APCW3216-202P2T | 2000Ω | ±25% | 50 | 100 | 200 | 1.2 | 10 | RoHS |
| APCW3216-142P2T | 1400Ω | ±25% | 50 | 100 | 220 | 1 | 10 | RoHS |
| APCW3216-102P2T | 1000Ω | ±25% | 50 | 100 | 230 | 1 | 10 | RoHS |
| APCW3216-801P2T | 800Ω | ±25% | 50 | 100 | 240 | 0.9 | 10 | RoHS |
| APCW3216-601P2T | 600Ω | ±25% | 50 | 100 | 260 | 0.8 | 10 | RoHS |
| APCW3216-361P2T | 360Ω | ±25% | 50 | 100 | 300 | 0.6 | 10 | RoHS |
| APCW3216-261P2T | 260Ω | ±25% | 50 | 100 | 310 | 0.5 | 10 | RoHS |
| APCW3216-221P2T | 220Ω | ±25% | 50 | 100 | 300 | 0.45 | 10 | RoHS |
| APCW3216-161P2T | 160Ω | ±25% | 50 | 100 | 340 | 0.4 | 10 | RoHS |
| APCW3216-121P2T | 120Ω | ±25% | 50 | 100 | 350 | 0.3 | 10 | RoHS |
| APCW3216-900P2T | 90Ω | ±25% | 50 | 100 | 370 | 0.3 | 10 | RoHS |
| APCW2012-102P2T | 1000Ω | ±25% | 50 | 100 | 150 | 1.3 | 10 | RoHS |
| APCW2012-901P2T | 900Ω | ±25% | 50 | 100 | 150 | 0.9 | 10 | RoHS |
| APCW2012-801P2T | 800Ω | ±25% | 50 | 100 | 300 | 0.88 | 10 | RoHS |
| APCW2012-601P2T | 600Ω | ±25% | 50 | 100 | 220 | 0.6 | 10 | RoHS |
| APCW2012-361P2T | 360Ω | ±25% | 50 | 100 | 280 | 0.55 | 10 | RoHS |
| APCW2012-261P2T | 260Ω | ±25% | 50 | 100 | 300 | 0.4 | 10 | RoHS |
| APCW2012-221P2T | 220Ω | ±25% | 50 | 100 | 300 | 0.4 | 10 | RoHS |
| APCW2012-181P2T | 180Ω | ±25% | 50 | 100 | 330 | 0.35 | 10 | RoHS |
| APCW2012-121P2T | 120Ω | ±25% | 50 | 100 | 370 | 0.3 | 10 | RoHS |
| APCW2012-900P2T | 90Ω | ±25% | 50 | 100 | 330 | 0.35 | 10 | RoHS |
| APCW2012-670P2T | 67Ω | ±25% | 50 | 100 | 400 | 0.25 | 10 | RoHS |
| APCW2012-500P2T | 50Ω | ±25% | 50 | 100 | 400 | 0.25 | 10 | RoHS |
