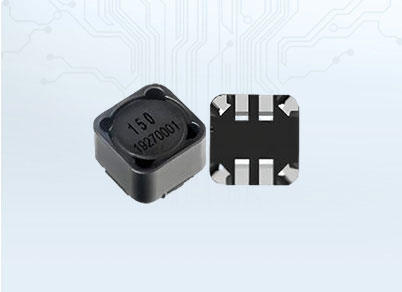

耦合电感 AWPR系列
● 高效率、高耦合。
● 额定电流高，直流电阻低。
● 兼容RoHS。
● 工作温度：-50℃~+150℃。
| Part Number | Inductance | Inductance
Tolerance | DC Resistance | Heat Rating Current | Saturation Current | Saturation Current | RoHS |
|---|
| - | @100kHz,0.1V | - | Max. | Typ. | Inductance
drops10% | Inductance
drops 30% | - |
|---|
| Units | μH | - | mΩ | A | A | A | - |
|---|
| AWPR1210-330M | 33.0μH | ± 20% | 75 | 3.1 | 4 | 6.2 | RoHS |
| AWPR1210-120M | 12.0μH | ± 20% | 28 | 5.6 | 7.1 | 10.4 | RoHS |
| AWPR1210-3R9M | 3.9μH | ± 20% | 18 | 7 | 12.5 | 17.6 | RoHS |
| AWPR1208-101M | 100μH | ± 20% | 280 | 1.5 | 2.1 | 3 | RoHS |
| AWPR1208-680M | 68μH | ± 20% | 206 | 1.8 | 2.5 | 3.6 | RoHS |
| AWPR1208-470M | 47μH | ± 20% | 132 | 2.2 | 3.1 | 4.3 | RoHS |
| AWPR1208-330M | 33μH | ± 20% | 105 | 2.5 | 3.6 | 5.2 | RoHS |
| AWPR1208-270M | 27μH | ± 20% | 96 | 2.7 | 3.9 | 5.7 | RoHS |
| AWPR1208-220M | 22μH | ± 20% | 72 | 3 | 4.7 | 6.7 | RoHS |
| AWPR1208-150M | 15μH | ± 20% | 40 | 3.6 | 5.2 | 7 | RoHS |
| AWPR1208-100M | 10μH | ± 20% | 36 | 4.1 | 6.8 | 9.8 | RoHS |
| AWPR1208-6R8M | 6.8μH | ± 20% | 29 | 4.5 | 8.1 | 11.4 | RoHS |
| AWPR1208-4R7M | 4.7μH | ± 20% | 25 | 5 | 9.2 | 12.9 | RoHS |
